Gaoxin Endüstri Parkı, Guangming Yeni Bölgesi, Shenzhen Şehri, Guangdong Eyaleti, Çin | Angelwang66@126.com |
Place of Origin: | Shenzhen,China |
Marka adı: | RAYTOP |
Sertifika: | CE, RoHS, FCC |
Model Number: | ETL1200100B |
Minimum Order Quantity: | 2K |
---|---|
Fiyat: | Negotiable |
Packaging Details: | Color box or blister, 20 pieces per master carton. |
Delivery Time: | 15-20 work days. |
Payment Terms: | T/T, L/C |
Supply Ability: | 50000 Pcs monthly. |
AC Cable: | 1.2M | Application: | Delta, HP, IBM, Gateway, Liteon |
---|---|---|---|
Approval: | CE, RoHS, FCC, UL | DC Cable: | 1.2M |
EMI Standards: | FCC Part 15B | Function: | Automatic |
Output Power: | 100W | Plug: | US |
Protection: | Short Circuit, Over Voltage, Over Current | Operating Temperature: | 0~40℃ |
Vurgulamak: | Evrensel Laptop güç kaynağı,Otomatik Laptop Şarj |

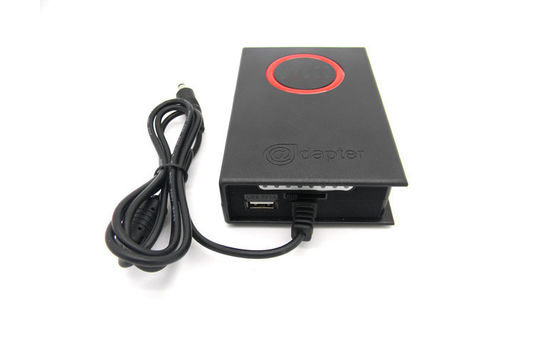

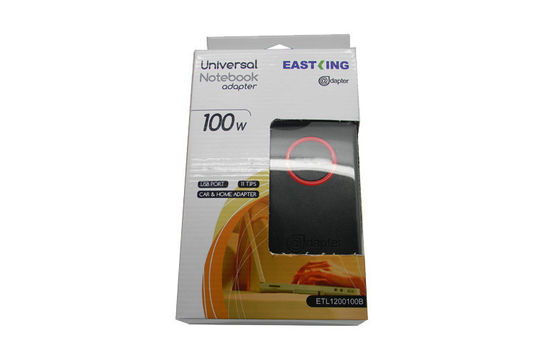

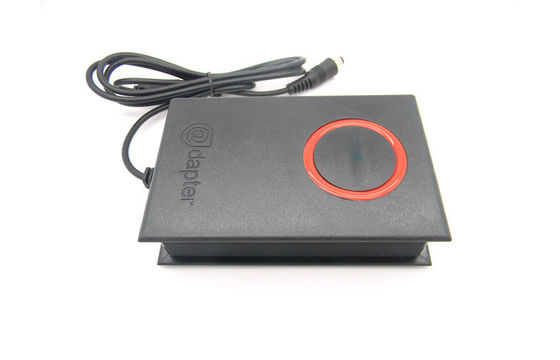

Automatic Universal Laptop Power Adapter , 100W Notebook Switching Power Supply
Quick Detail:
Place of Origin: Shenzhen, China
Brand Name: Raytop
Usage: Notebook/Netbook
AC Input: 100-240V, 50/60Hz, 1.8Amp.
Output: DC12/15/16/18/19/20/22/24V
USB Port: 5V,1.0A
Power Cord:
AC Cable: 2x0.75mm2, or 3x0.75mm2 length: 1.2M
DC Cable: 18AWG, Copper, length: 1.2M
Condition: All new products, 100% burn-in test.
Product Type: Universal AC Adapter
Power:100W
Color: Black.
Specifications:
9 Tip Compatibility List:
6.5x4.4mm |
DELL, SONY, FUJITU, SAMSUNG, PANASONIC |
6.3x3.0mm |
NEC, AT&T,IBM,TOSHIBA,SAMSUNG |
5.5x2.5mm |
HP,NEC,IBM,DELL,LG,ACER,TOSHIBA,GATEWAY,FUJITU,SHARP,COMPAQ |
5.5X2.1mm |
IBM,DELL,ACER,SHARP,HITACHI |
5.5x1.7mm |
HP,ACER,FUJITU,GATEWAY |
4.8x1.7mm |
HP,LG,ASUS,GATEWAY,COMPAQ |
5.5x3.0mm |
LG,SAMSUNG |
7.4x5.0mm |
HP,DELL |
7.9x5.5mm |
DELL,IBM-LENOVO |
4.0x1.7mm |
NOKIA, HP MINI |
2.5X0.7mm |
ASUS, NETBOOKS |
Datasheet:
Input |
Rated Input Voltage |
AC100~240V |
Input Voltage Range |
AC 90~264V |
|
Rated Frequency |
50/60 Hz |
|
Input Frequency Range |
47~63 Hz |
|
Input AC Current |
1.8A |
|
Inrush Current |
30A |
|
Output |
Rated Output Voltage |
DC12-24V |
Output Voltage |
DC12/15/16/18/19/20/22/24V |
|
Rated Output Current |
4.0A |
|
USB Port |
5V,1.0A |
|
Rated Power |
100W |
|
Ripple and Noise |
100mV p-p |
|
Standby Power Consumption |
0.3W |
|
Turn-on |
5s |
|
Hold-up |
20s |
|
Over Voltage Protection |
Yes |
|
Over Current Protection |
Yes |
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
Reliability |
Hi-pot |
3000Vac |
Insulation Resistance |
Input to output at 500Vdc |
|
Leakage Current |
5mA |
|
EMI Standards |
FCC Part 15B Class B |
|
RoHS Compliant |
Yes |
|
MTBF |
50,000 hours |
|
Burn-in |
40+/-5 ℃, full load, 4 hours |
|
Drop Test |
6 direction, each one time from height 1.0M |
|
Environmental |
Operating Temperature |
0~40℃ |
Operating Humidity |
10~80% |
|
Storage Temperature |
-20~65℃ |
|
Storage Humidity |
0~90% |
|
Safety Approvals |
CE, RoHS, FCC. |
|
Warranty |
2 Years |
|
Contents |

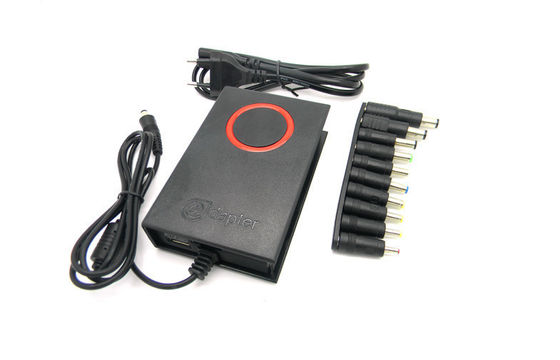

1Adapter + 1AC Cable+1DC Cable +11 Connectors |
Applications:
External power supply, used to charge most top brand laptops/notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. It can also charge personal devices like smart phones, tablet, iPhone 4g/4s, iPhone 5g/5s, iPad, iPod and so on simultaneously when using your laptops.
Competitive Advantage:
-Open private model w/o extra cost for you;
-0.3% free backup of order quantity;
-Direct factory price without middle man.
-High performance-to-price ratio;
-Perfect after-sale service
