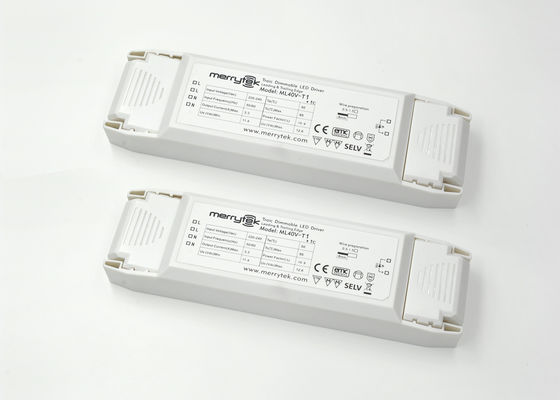

Traic Constant Voltage Dimmable Led Driver 40W 24Vdc with RC Dimming for LED Strip

Traic Constant Voltage Dimmable Led Driver 40W 24Vdc with RC Dimming for LED Strip

  • Traic Constant Voltage Dimmable Led Driver 40W 24Vdc with RC Dimming for LED Strip
Traic Constant Voltage Dimmable Led Driver 40W 24Vdc with RC Dimming for LED Strip
Ürün ayrıntıları:
Place of Origin: China
Marka adı: Merrytek
Sertifika: CE
Model Number: ML40V-T1
Ödeme & teslimat koşulları:
Minimum Order Quantity: 100pcs
Fiyat: Negotiation
Packaging Details: Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time: 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Supply Ability: 10,000pcs per month
İletişim
Detaylı ürün tanımı
Working Temperature: -25℃-50℃ Product Name: 45W/24Vdc traic dimmable led driver
Isolation Class: Class II, SELV Output voltage: 24Vdc
Approvals: CE Output load: 40W max
Output current: 1.66A max Protection Class: IP20
Input Voltage: 220-240Vac Dimming Mode: RC Traic
Vurgulamak:

24v constant voltage led driver

,

12v constant voltage led driver

40W 24Vdc Constant VoltageTraic Dimmbale Led Driver with RC Dimming for LED Strip​



Description:

1, Constant voltage 24Vdc

2.The output load is 40W max

3. The triac dimmable led driber mainly works for led strip

4. The trailing -edge dimming , cpmpatible with popular dimmer in Euro.

5. Compatible with dimmer: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00

6. Protection: Short circuit / Over voltage / Over temperature.

7. Dimming range: 10%-100%

8.  without flickering





Specifications

Input

Input voltage

220-240Vac, 50/60Hz

Power factor (PF)

≥0.9(@ 240Vac input, full load and without dimmer)

Efficiency

≥82%(@ 240Vac input, full load and without dimmer)

No-load power

≤1.5W

Output

Output Voltage

24V DC

Output Current

1.66A max.

Voltage accuracy

±5%

Rated power

40W Max.

Dimming

Dimming mode

Trailing edge dimming

Dimming range

10%-100%

Environment

Working temperature

-25℃~50℃

Storage temperature

-40℃~80℃

Safety and EMC

Insulation class

Class II, SELV

Withstand voltage

Input-Output: 3.7kVac/5mA/1min

EMC

Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547

Safety

Compliance to EN61347-1, EN61347-2-13

Protection

Short circuit

Protection mode: Auto recovery

Over temperature

Protection mode: Auto recovery

Others

Dimension

220x58x40mm

Enclosure

Plastic, white

IP rating

IP20

Connection

Input: 4-hole press-in type terminal(L, L, N, N)

Output: Screw terminal block (LED +, LED -)

Life time

30,000h

Certification

CE
