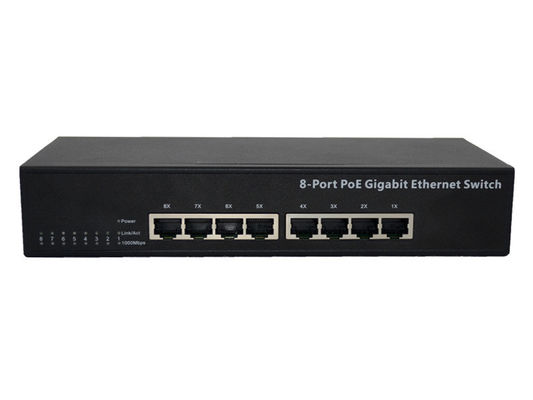

8 Port RJ45 Port Desktop PoE Switch IEEE 802.3x 10 / 100 / 1000M

Ürün ayrıntıları:

Place of Origin:	Shenzhen
Marka adı:	Fiberroad
Sertifika:	CE ROHS
Model Number:	FR-POES-G8

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1pc
Fiyat:	Pls send request details
Packaging Details:	Standard neutral or brand packing
Delivery Time:	2-3 workdays
Payment Terms:	T/T, Western Union
Supply Ability:	5000pcs/Month

İletişim

Detaylı ürün tanımı

Name:	POE Switch	Output Type::	Single
Network Transfer Data Rate::	10/100/1000Mbps	Communication Mode::	Full-Duplex & Half-Duplex
Ports::	8	Input Voltage::	220V
Vurgulamak:	poe powered switch , poe power over ethernet

8 Port RJ45 Port Desktop PoE Switch IEEE 802.3x 10 / 100 / 1000M

Supports PoE power up to 13W for each PoE port
Supports PoE power up to 120W for all PoE ports
Supports PoE IEEE 802.3af compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
1K entry MAC address table of the SL-SF1008GP with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
External power adapter supply

What This Product Does

The 8-port 10/100/1000M Desktop PoE Switch provides the seamless network connection. It integrates 1000Mbps Fast Ethernet and 100Mbps Ethernet network capabilities.

Overload Arrangement

It has the priority* function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 120W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Port Priority Function

*Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 13w (maximum power per port is 13W), the system power is 120w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 13w, and Port3 will use 10w, and no power will be supplied to Port 4.

Easy To Use

It is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the SL-1008GP 8-port 10/100/1000M Desktop PoE Switch is a great selection for expanding your home or office network.

HARDWARE FEATURES
Interface	8 10/100/1000Mbps RJ45 Ports
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
PoE Ports (RJ45)	4
Backbound Bandwidth	16Gbps
Mac Address Table	8K
External Power Supply	External Power Adapter(Output: 48VDC / 1.25A)
Dimensions (W X D X H)	225mm110mm41mm

SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

OTHERS
Package Contents	Cable/DSL Router, Quick installation Guide, CD-ROM, Power Adapter, RJ-15 Ethernet Cable,Warranty Card
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Supports PoE power up to 13W for each PoE port

Supports PoE power up to 120W for all PoE ports

Supports PoE IEEE 802.3af compliant PDs

Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode

1K entry MAC address table of the SL-SF1008P with auto-learning and auto-aging

LED indicators for monitoring power, link, activity and speed

External power adapter supply
