Place of Origin: | China |
Marka adı: | pearmain |
Sertifika: | CE, UL |
Model Number: | PE60S |
Minimum Order Quantity: | 1unit |
---|---|
Fiyat: | negotiation |
Packaging Details: | special shipping carton, 67x61x58cm, 30kgs |
Delivery Time: | 7 working days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 100units per week |
input: | 512ch | output: | 64 |
---|---|---|---|
communication: | software to set all parameter of matrix | Dual CPU: | external Dual CPU |
Dual power: | Dual power supply unit | ||
Vurgulamak: | analog matrix,analog switch matrix |

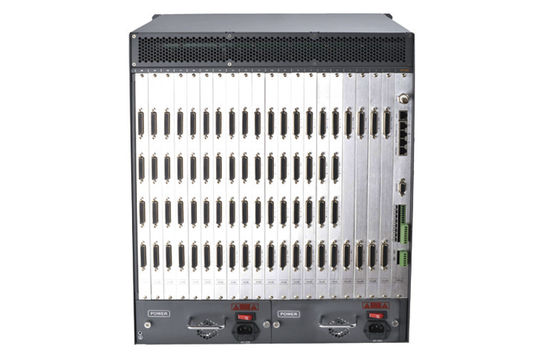

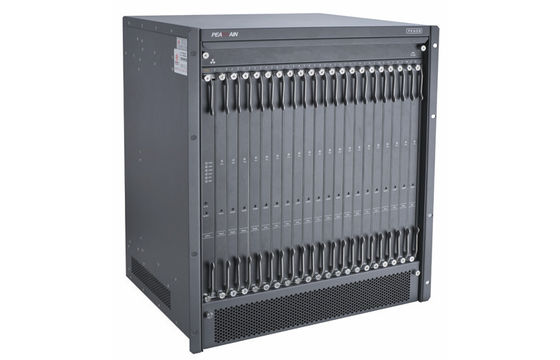

PE60S Full cross-point analog Video Matrix switcher , Pearmain modular matrix system , UL certified
Quick Detail:
● Microprocessor-Based, Full Cross-Point Video Matrix.
● Modularization Design Supports Up To 512 Cameras And 64 Monitors In Each Matrix Bay
● Control Up To 50,000 Cameras And 512 Monitors On Base Of System Extension.
● System Diagnostic Leds Displayed On Front Panel.
● Logical Camera Selection And Priority Level Operation & Configuration In Matrix Software
● Built-In Video Loss Detection
● Windows-Based System Management Software, Includes Multilingual Menus And On-Screen Help
● Factory Tested Prepackaged System Configuration And Quick-Guide Manual.
● Including ASCII Data, DVR, PTZ, Network, Etc. Protocol
● Powerful Macro Programming
● CE, FCC, ROHS,UL compliant
Description:
PE60S is Network Modular Matrix, one matrix bay can have up to 512ch video input & 64ch video output, can extend to 65535ch input, Dual CPU & Dual Power supply for Plug & play and seamless switching.
Redundant Dual CPU & Dual power supply unit for double guarantee.
Configuration software to set all parameter of matrix.
Specifications:
Communication |
||
Communication |
RS-422, RS-485, RS-232, TCP/IP |
|
Baud rate |
19200 bits/s, 9600 bits/s, 4800 bits/s, 2400 bits/s etc. |
|
Interface |
RS-422 RJ45 connector ( full duplex ) RS-232 RJ45 connector RS-485 3-pin 3.81 connector(semi-duplex) |
|
System configuration |
||
System User |
255 |
|
System capacity |
Main matrix bay: 512ch inputs/ 64ch outputs Maximum input: 608ch inputs / 8ch outputs Maximum after extension: 50000ch outputs / 512ch outputs Logic encoding value: 999999 inputs / 2048outputs |
|
Alarm capacity |
50000 |
|
On-screen display |
Camera title: 32 english character Full screen: 16 lines, 42 row english character |
|
Character |
Chinese/ English / Latin / Cyrillic |
|
Power-off memory time |
10 year |
|
Video |
||
Video input |
1Vp-p/75Ω Composite signal |
|
Video output |
1Vp-p/75Ω Composite signal |
|
Signal to noise ratio |
>60dB ( unweighted ) >70dB ( weighted ) |
|
Channel bandwidth |
5Hz~8MHz(1Vp-p with filter) 20MHz(1Vp-p,-3dB without filter) 65MHz(20mVp-p,-3dB without filter) |
|
Insertion gain |
<0.2dB |
|
Differential gain |
<1.0% |
|
Differential phase |
<1.1° |
|
Frequency characteristics |
<1.0dB(5.8MHz) |
|
Adjacent Channel Crosstalk |
<-55dB(PAL: 4.43MHz/NTSC: 3.58MHz) |
|
Adjacent channel isolation |
>50dB(PAL: 4.43MHz/NTSC: 3.58MHz) |
|
Line Time Waveform Distortion |
<1.0% |
|
Typical switching time |
20ms(Typical) |
|
Electrical Characteristics |
||
Power Supply |
100~240VAC 50/60Hz Adaptive |
|
Power consumption |
160W |
|
Mechanical Specifications |
||
Weight |
35KG(Full capacity) |
|
Installation dimension |
484mm(Width)×366.0mm(Depth)×532.6mm(12U) height |
|
Rack |
19’’ EIA standard chassis |
|
Environmental specifications |
||
Operating temperature |
-10~+55℃ |
|
Operating Humidity |
0~90%RH(No condensation) |
|
Applications:
For the surveillance system where there are all analog cameras, the application focus on real time surveillance.
The application including Transportation control center, casino, city surveillance, anti-terrorist, harbor,etc. large scale surveillance system.
