667 High Brightness Full HD Lilliput Camera Monitor in CCTV Monitor And Making Movies
667 High brightness 7" HD Camera Monitor With HDMI Input
- High resolution: 800×480,
- High brightness: 450cd/㎡,
- High contrast: 500:1,
- DV battery plates for power,
- Multi mounts methods & angles,
- Wide voltage: 6-24V,
The Lilliput 667 is a 7 inch 16:9 LED field monitor with HDMI, component, and composite video inputs.
7 inch monitor with wide screen aspect ratio
Whether you're shooting still or video with your DSLR, sometimes you need a bigger screen than the tiny monitor built into your camera. The 7 inch screen gives directors and camera men a larger view finder, and the 16:9 aspect ratio complements HD resolutions.
Designed for the pro video market
Cameras, lenses, tripods and lights are all expensive - but your field monitor doesn't have to be. Lilliput are famous for manufacturing durable and high quality hardware, at a fraction of the cost of competitors. With the majority of DSLR cameras supporting HDMI output, it is likely your camera is compatible with the 667. The 667 is supplied with all the accessories you need - shoe mount adapter, sun hood, HDMI cable and remote control, saving you a great deal in accessories alone.
High contrast ratio
Professional camera crews and photographers require accurate colour representation on their field monitor, and the 667 provides just that. The LED backlit, matte display has a 500:1 colour contrast ratio so colours are rich and vibrant, and the matte display prevents any unnecessary glare or reflection.
Enhanced brightness, great outdoor performance
The 667 is Lilliput's brightest monitor. The enhanced 450 cd/㎡ backlight produces a crystal clear picture and shows colours vividly. Importantly, the enhanced brightness prevents the video content from looking 'washed out' when the monitor is used under sun light. The addition of the inclusive sun hood (supplied with all 667 units, also detachable), the Lilliput 667 ensures a perfect picture both indoors and outdoors.
Battery plates included
The key difference between the 667 and the 668 is the battery solution. Whereas the 668GL includes an internal battery, the 667 includes battery plates which are compatible with F970, QM91D, LP-E6, and DU21 batteries.

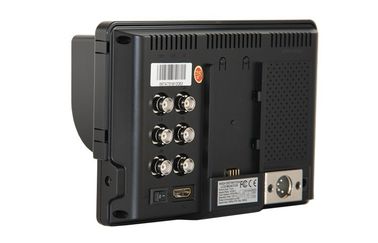

HDMI, and component and composite through BNC connectors
No matter which camera or AV equipment our customers use with the 667, there is a video input to suit all applications.
Most DSLR cameras ship with an HDMI output, but larger production cameras output HD component and regular composite through BNC connectors.
|
DISPLAY
|
Panel |
7" LED backlit |
| Physical Resolution |
800×480, support up to 1920×1080 |
| Aspect Ratio |
16:9 |
| Brightness |
450cd/㎡ |
| Contrast |
500:1 |
| Viewing Angle |
140°/120°(H/V) |
|
INPUT
|
HDMI |
1 |
| YPbPr |
3(BNC) |
| VIDEO |
2 |
| AUDIO |
1 |
|
AUDIO
|
Speaker |
1(build-in) |
| Audio Output |
≤1W |
|
POWER
|
Current |
650mA |
| Input Voltage |
DC 6-24V(XLR) |
| Battery Plate |
F970 / QM91D / DU21 / LP-E6 |
| Power Consumption |
≤8W |
|
ENVIRONMENT
|
Operating Temperature |
-20℃～60℃ |
| Storage Temperature |
-30℃～70℃ |
|
DIMENSION
|
Dimension(LWD) |
188×131×33mm
194×134×73mm (with cover) |
| Weight |
510g / 568g (with cover) |
Accessories:
Sun shade: 1 Piece
Battery plate (F-970, QM91D, DU21 or LP-E6): 2 Piece
12V1.5A DC adapter: 1 Piece
Remote control: 1 Piece
Manual: 1 Copy
HDMI to mini HDMI cable (optional): 1 Piece
Shoe mount (for camera only) (optional): 1 Piece
