Gaoxin Endüstri Parkı, Guangming Yeni Bölgesi, Shenzhen Şehri, Guangdong Eyaleti, Çin | Angelwang66@126.com |
Place of Origin: | Shenzhen China |
Marka adı: | DongDaHua |
Sertifika: | CE & ROSH |
Model Number: | F-30-12 |
Minimum Order Quantity: | 50PCS |
---|---|
Fiyat: | Factory Price |
Packaging Details: | As for your requirement |
Delivery Time: | As per your order quantity |
Payment Terms: | T/T & L/C |
Supply Ability: | 4000 Pieces/Day |
Product Name: | Waterproof LED Driver | Safety standards: | EPA8270C |
---|---|---|---|
Current: | 2.5A | Output voltage: | 12V DC |
Output Power: | 30W | IP: | IP68 |
Vurgulamak: | 12v dc LED driver,12 volt led driver |

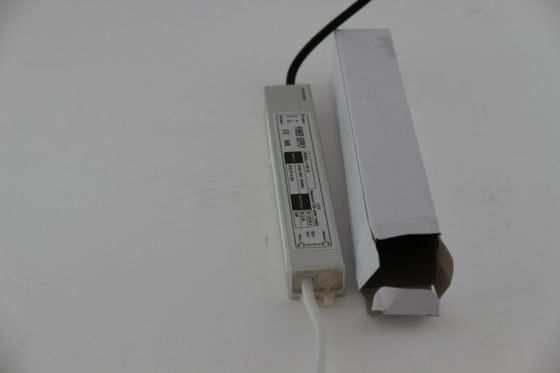

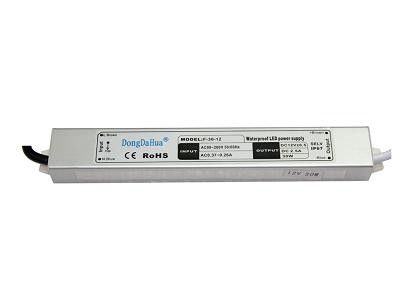

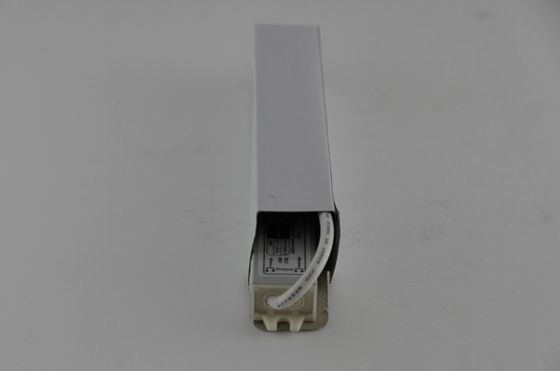

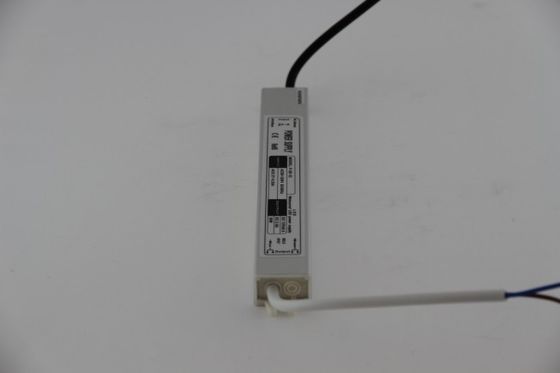

Over-voltage Protection Waterproof LED Driver Power Supply 30W 12VDC 2.5A IP68 EPA8270C
Competitive Advantage:
•IP67 protection grade
•100% load test, built-in EMI filters
•Full range of input voltage
•output voltage accurate and stable
•Output over-voltage, over-current and short-circuit protection
•Output low ripple and noise
•Two year warranty
•Average working no trouble >50, 000 hours
Specifications:
Product Electric Parameters | |||
Input specification | Input voltage | AC90V---264V | |
Input frequency | 47-63Hz | ||
Input surge | 20A@120VAC 40A@230VAC | ||
Output specification | Start-up time | ≦1S (230V Input, Io=100%) | |
keep time | ≧20mS (230V Input, Io=100%) | ||
Voltage regulation | (full)≦0.5% | ||
Protection function | Overload protection | 105% - 150% rated power, automatic recovery | |
Over-voltage protection | 105% - 150% of the rated voltage | ||
Insulation intensity | Input---output | 1500VAC/1min | |
Input--ground | 1500VAC/1min | ||
Output---ground | 500VAC/1min | ||
Safety standards | According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards. | ||
E M C standards | According with EN55022 class A EN61347-2-13:2008 standards | ||
Environmental | working temperature | - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) | |
Storage temperature | - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) | ||
height above sea level | ≦2000M | ||
Structure | Size (mm) | 200(L)*30(W)*20(H) | |
Cooling method | Cooling method | Natural cooling air convection | |
Weight | 0.26KG/P |
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
