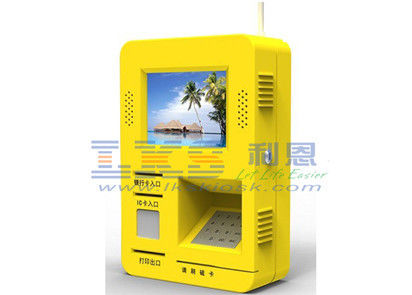

Wall Mounted Interactive Touch Screen Kiosk With Magnetic Stripe / RF / IC Card

Wall Mounted Interactive Touch Screen Kiosk With Magnetic Stripe / RF / IC Card

Wall Mounted Interactive Touch Screen Kiosk With Magnetic Stripe / RF / IC Card

Ürün ayrıntıları:

Place of Origin: China
Marka adı: LKS or customized
Sertifika: CE, FCC
Model Number: LKS8218D

Ödeme & teslimat koşulları:

Minimum Order Quantity: 5 Units
Packaging Details: Film wrap, foam and wooden box
Delivery Time: 4-6 weeks upon payment
Payment Terms: T/T in advance, Western Union, L/C
Supply Ability: 1000 units per month
Şimdi başvurun
Detaylı ürün tanımı
Material: Cold Rolled Steel or Stainless steel or others Material Feature: Anti-vandal, Anti-dust,Anti-acid,Waterproof
Application: Indoor OS: Windows 7 / Windows 8 / Linux / Android 4.4.4
Display: LCD, TFT, LED Type of Card: Smart card like IC and Magnetic stripe or RF card ,contactless card
Touch Screen: IR / SAW / Capacitive / Resistent Warranty: 12 months after delivery
Power supply: 110-120V, 220V-240V or others Color and Logo: Customizable
Function: Self payment wall mounted kiosk Type: Wall mounted
Size of the screen: 15 inch Card reader type: By auto inserting or swiping

Wall Mounted Interactive Touch Screen Kiosk With Magnetic Stripe / RF / IC Card





Standard configuration:

  1. 15 inch monitor
  2. 15 inch touch screen
  3. Industrious PC,Intel dual-core Atom D525 chip,500GB HDD,2GB RAM
  4. Webcam
  5. Receipt printer
  6. Encrypting Pinpad
  7. Auto insert smart card reader
  8. Magnetic swipe card reader
  9. Contactless card reader
  10. Alarm system sensor
  11. Speaker
  12. Wall mounted cabinet



Specification  is as following:



Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core Intel Atom D525
RAM 2GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 15 inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 15 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Receipt Printer Interface High Speed USB
Resolution 4800*1200 maximum
Printing speed 4.8 ipm
Width 58 /80 /112 mm
Length Customizable

Webcam



Resolution 1280*720
Pixel 8000000
Adaptive Resolution 1280*720
Interface USB 2.0
Driver No
Encrypting Pinpad Keylift‐span 2,000,000 cycles
Key force 2~3N
Key trip  >2.5mm
Protection level IP65
Operating Temperature  0° C to 40° C
Auto insert card reader Interface RS232
Card Type Support  IC Card, RF Card,  Mifare S50,S70,UL Card
Magnetic Head Life 500,000/min
500,000/min 300,000/min
Power Voltage  DC 24V±5%
Magnetic swipe card reader Card standard ISO 7811/2
Operation speed 15-120 cm/sec (6-50inch/sec)
Head life At least 500,000 times
Track I(IATA), II (ABA), III (MINTS)
Track location ISO1 (IATA), ISO2 (ABA), ISO3 (MINTS)
Track width 1.5mm
Card thickness 0.76 ± 0.08 mm
Contactless card reader Interface Support  ISO14443
Card Type ISO14443TypeA of Contactless IC Card, including Mifare S50,Mifare S70,MF1ICL10,Mifare Pro,Mifare desfire,Mifare ultralight
Status Display LED indicator to show the power or communication status
Operated Temperature From -20 to +60ºC
UPS Input voltage 145-290 V
Output voltage 200-255 V
Output frequency 50±0.5Hz
Transient time 50±0.5Hz
Max time for supplying a single PC 3~20minutes (for single PC)
Alarm system sensor / IO control board Function Door alarm sensor with enternet function, SIM,SMS,CALL
Speakers Features Dual channel amplified speakers for Stereo ,8Ω 5W
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
Wall mounted Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Package Security Packing method with bubble foam and wooden case


Other Optional hardware components List is as following:



  1. Barcode scanner
  2. WIFI or 3G Wireless module
  3. ID / Driver licence / Social insurance card double-side scanner
  4. Card dispenser


Description



  1. LKS Wall Mounted Kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
  2. LKS main Wall Mounted Kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
  3. LKS  Wall Mounted Kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
  4. LKS is a Wall Mounted Kiosk manufacturers and ATM kiosk supplier in China. It provides the Self Service Kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.




Multi-function:


  • Bank
  • Retailer store
  • Shopping Mall
  • Railway Station
  • Metro Station
  • ATM booth
  • Supermarket
  • Gas station
  • Tourism destination
  • Coffe shop
  • Bus station
  • Other Public area




Our Advantages:




Design for  24 / 7 application:




  • Less power consuming and more stable Industrious modules
  • Inner air recycling design for heat and humidity control
  • Bank card withdrawl when power cut-off
  • Hang on the wall with safety locks
  • Alarm system sensor with reporting function


Cost-effective Solution



  • Less labor force involved
  • Independent modular hardward components
  • Complete and competitive supply chain management
  • Free maintenance,operation friendly
  • Full card payment ways like magnetic stripe,IC and RF included
  • Card issue by machine automatically

 Appearance



  • Anti-vandal
  • Anti-theft with alarm system
  • Compact while safe design
  • Flexible in customization
  • Anti-scratching painting
