Place of Origin: | China |
Marka adı: | DongDaHua |
Sertifika: | CE RoHS |
Model Number: | HF-100-36-20-3A00 |
Minimum Order Quantity: | 10 |
---|---|
Fiyat: | / |

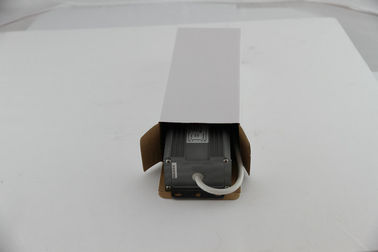

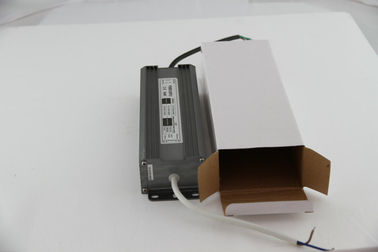

Packaging Details: | as per your request |
Delivery Time: | 3-7 days on averange |
Payment Terms: | TT;Paypal |
Supply Ability: | 3000pcs/Day |
Product Name: | Constant Current LED Driver | Input Frequency Range: | 47~60Hz |
---|---|---|---|
Output Dc Voltage: | 20~36V | Output Rated Current: | 3200mA |
Output Rated Power: | 100W | Protections: | Short circuit/OLP/OVP |
Vurgulamak: | constant current Source led driver,constant current led drivers |

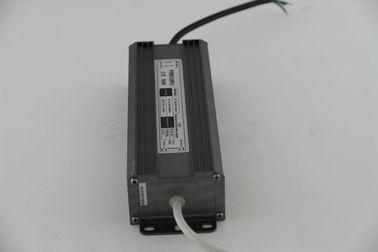

100W 3200mA Constant Current LED Driver with CE RohS
Features:
Universal AC input/Full range
Protections: Short circuit/OLP/OVP
Meet EMC standards
100% full load burn-in test
High efficiency,long life and high reliability
IP67 design for indoor and outdoor

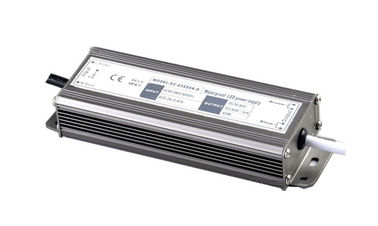

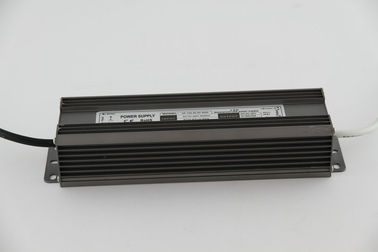

100W 3200mA 200V AC Constant Current LED Driver CE RohS , Waterproof LED Current Driver
Specifications:
Model | HF-100-36-20-3A00 | |||
Output | Dc Voltage | 20~36V±5% | ||
Rated Current | 3200mA | |||
Rated Power | 100W | |||
Ripple&Noise(Max) | 200mV | |||
Current Tolerance | ±20mA | |||
Setup,Rise Time | 100ms/220VAC | |||
Hold Up Time(Typ.) | ||||
Input | Voltage Range | 170~250VAC | ||
Frequency Range | 47~60Hz | |||
Power Factor(Typ) | PF>0.6/220VAC | |||
Efficiency(Typ) | 83% | |||
Ac Current(Typ) | 0.63A/235V | |||
Inrush Current(Typ) | Cold-start current 3.2A/235V | |||
Protection | Short Circuit | Protection type:recovers automatically after fault conditions is removed | ||
Overlaod | Overload protection@145~160%above peak rating | |||
Over Temperature | protection typer:shut down o/p voltage.re-power on to recover | |||
Environment | Working Temp | -30~ +60℃(Refer to output load derating curve) | ||
Working Humidity | 20~90%RH no-condensing (Waterproof) | |||
Storage Temp Humidity | -40~ +80℃,10~90%RH | |||
Safety&EMC | Safety Standards | CE Mark(LVD),IP67 | ||
Withstand Voltage | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | |||
Emc Test Standards | EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005 EN 61347-1:2008 EN 61347-2-13:2006 | |||
NOTE | 1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25℃ of ambient temperature. | |||
2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. | ||||
3.Tolerance:includes set up tolerance,line regulation and load regulation. |
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
