Multimode Power Over Ethernet PSE Media Converter Over-current protection

Ürün ayrıntıları:

Place of Origin:	ShenZhen China
Marka adı:	Fiberroad
Sertifika:	CE SGS ISO9000 FCC
Model Number:	FR-POE332-XX-XXXX

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1pcs
Fiyat:	Pls send request details
Packaging Details:	Standard neutral or brand packing
Delivery Time:	2-3 workdays
Payment Terms:	T/T, Western Union
Supply Ability:	5000pcs/Month

İletişim

Detaylı ürün tanımı

Input voltage:	100 VAC to 240 VAC	Input frequency:	47 Hz to 63 Hz
For IEEE802.3af standard:	1/2 (V+),3/6 (V-)	Operating temperature:	0℃ to 50℃
Case Material:	Iron	Case Color:	Black
Vurgulamak:	poe power over ethernet , power over ethernet switch

Multimode Power Over Ethernet PSE Media Converter Over-current protection

FR-POE332 series is a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Complied with IEEE802.3at or IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feets).

The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function, etc. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.

Key Features

10/100/1000Base-TX UTP to 1000Base-FX fiber media convertion
IEEE802.3at / IEEE802.3af PoE PSE compatible
Built-in AC/DC power supply
Over-current protection
choice of SC, LC, BiDi or other connectors for multimode and singlemode

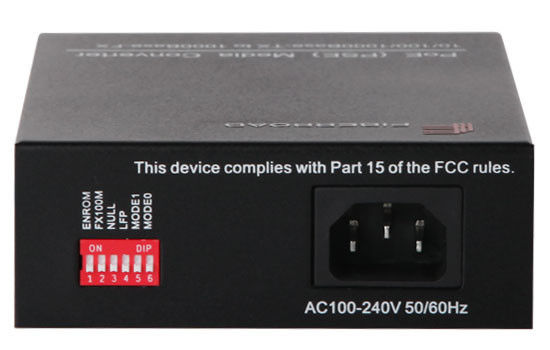

DIP switch to set different configurations
LFP (Link Fault Pass-through) support

Specification

Data Rates	10/100/1000Mbps(IEEE802.3U IEEE802.3z 1000Base-Tx)
Data Rates	1000Mbps (1000Base-FX) or 100Mbps (100Base-FX)
Input Power Requirements
Input voltage	100 VAC to 240 VAC
Input frequency	47 Hz to 63 Hz
Power over Ethernet Output
Pin Assignment and Polarity
For IEEE802.3af standard	1/2 (V+),3/6 (V-)
For IEEE802.3at standard (30watts maximum)	1/2 (V+),3/6 (V-)
For IEEE802.3at standard (50watts maximum)	1/2/4/5 (V+),3/6/7/8 (V-)
Output Power	please refer to ordering information
Efficiency	75% min
Short circuit protection	auto recovery
Over current protection	auto recovery
Environmental Conditions
Operating temperature	0℃ to 50℃
Cooling	free air convection
Storage temperature	-20℃ to +85℃
Operating Humidity	90% max, non-condensing
Mechanical Specifications
Case Material	Iron
Case Color	Black
Net Weight	560g approx. / unit
Dimensions	110(W) x 40(H) x 140(L) (mm)
Do not include transceiver length

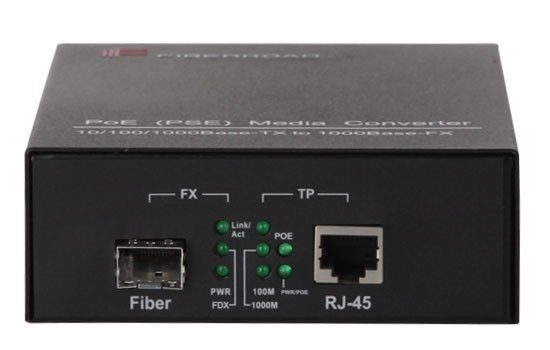

Connectors
AC Inlet	IEC-J-4
LAN	Shielded RJ-45
Fiber	see ordering information
