Place of Origin: | China |
Marka adı: | G-ORIENT |
Sertifika: | ISO9001 / CE / ROHS / FCC |
Model Number: | NHI200-4.5-A |
Minimum Order Quantity: | 10pcs |
---|---|
Fiyat: | negotiable |
Packaging Details: | 20pcs/16Kgs / CARTONS |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, Paypal, L/C, Western Union |
Supply Ability: | 50,000pcs per month |
Application: | Indoor | High efficiency: | 83% |
---|---|---|---|
Output: | 4.5V DC / 40A | Output power: | 180W |
Input: | 200-240V AC | Output Type: | Single |
Place of Origin: | Shenzhen China | ||
Vurgulamak: | ac to dc power converter,ac to dc converter |

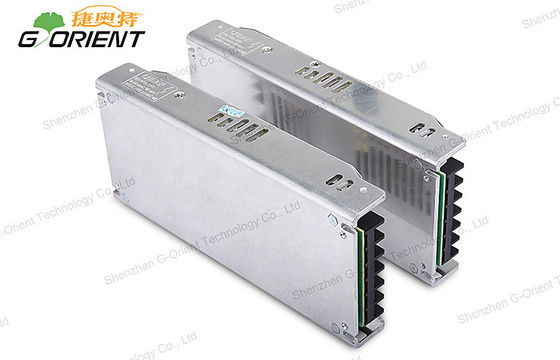

High Efficiency LED Lighting AC DC Converter 4.5V 40A 180W
Competitive Advantage:
* Ultra-thin 30mm
* High efficiency up to 85%
* Ultra-low start up temp.(- 40℃)
* synchonous rectification
* Small size,ultra-light and easy to install
* CE / ROHS / FCC approval
* Protections:Short circuit / Overload / Over voltage / Over temperature
Applications:
* urban landscape lighting
* LED Lighting
* Military project
* Communication security equipment
* indoor and outdoor advertising screens
* New energy and other Various industries
Specifications:
Switching power supply |
NHI200-4.5-A |
|
OUTPUT |
DC Voltage |
4.5V |
Current Range |
0~40A |
|
Rated Current |
40A |
|
Rated Power |
180W |
|
Ripple & Noise(max.) |
<250mVp-p |
|
Voltage ADJ.Range |
4.05~4.95V |
|
Voltage Tolerance |
+/- 2.0% |
|
Line Regulation |
+/- 0.5% |
|
Load Regulation |
+/- 1.0% |
|
Setup,Rise Time |
1000ms,50ms/230VAC |
|
Hold up time |
20ms/230VAC |
|
INPUT |
Voltage Range |
200-240VAC |
Frequency Range |
47-63Hz |
|
Efficiency(Typ.) |
83-88% |
|
AC Current |
2.5A/230VAC |
|
Inrush Current(max.) |
55A/230VAC |
|
Leakage Current |
< 3.5mA /240VAC |
|
Protection |
Over Load |
105 ~ 150% rated output power |
Protection type: Constant current limiting,recovers automatically after fault condition is removed |
||
Over Voltage |
5.2 ~ 6.3V |
|
Protection type: Shut down O/P voltage,re-power on to recover |
||
Over Temperature |
100℃ +/- 5℃ |
|
Protection type: Shut down O/P voltage,recovers automatically after temperature goes down |
||
Environment |
Working Temp. |
-40 ~ +60℃ (Refer to output load derating curve) |
Working Humidity |
20 ~ 90% RH, non-condensing |
|
Storage Temp., Humidity |
-40 ~ +85℃, 10 ~ 95% RH |
|
Temp.Coefficient |
+/-0.03%/℃ (0 ~ 50℃) |
|
Vibration |
10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes |
|
Safety |
Safety standards |
UL60950-1 approved |
Withstand Voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|
Isolation Resistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH |
|
Others |
MTBF |
271.9K hrs min. MIL-HDBK-217F(25℃) |
Dimension |
190*85*30mm (L*W*H) |
|
Packing |
0.8kg; 20pcs/16Kgs |
|
Note |
1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature. |
|
2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor. |
||
3. Tolerance: includes set up tolerance,line regulation and load regulation. |
||
4. Please connect positive pole of input voltage with mark”L” of terminal block,connect negative pole of input voltage with mark”N” of terminal block,using DC voltage for input voltage |
Features:
* AC input range selectable by switch
* Protections:Short circuit / Overload / Over voltage / Over temperature
* 100% full load burn-in test
* Fixed switching frequency at 90KHz
* 2 years warranty
* Cooling by free air convection
* Built-in constant current limiting circuit
Company Advantage:
* Professional R&D team
* High quality products
* Short lead time
* Standardized production process
