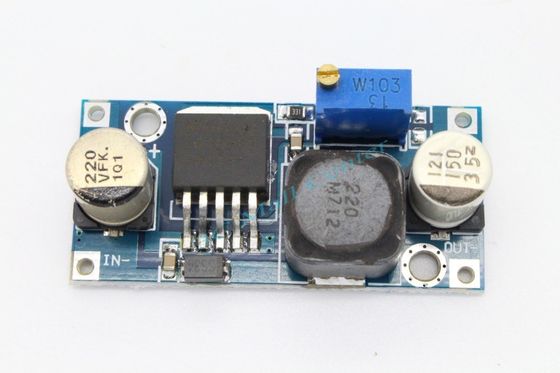

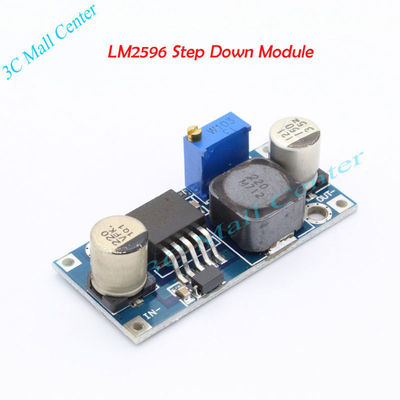

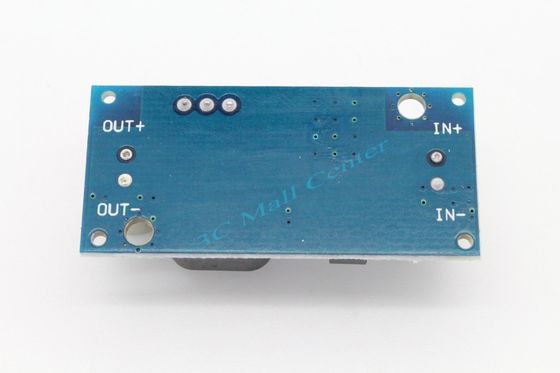

DC-DC Buck Converter Step Down Module , IC Module LM2596 Power Supply Output 1.23V-30V

DC-DC Buck Converter Step Down Module , IC Module LM2596 Power Supply Output 1.23V-30V

  • DC-DC Buck Converter Step Down Module , IC Module LM2596 Power Supply Output 1.23V-30V
  • DC-DC Buck Converter Step Down Module , IC Module LM2596 Power Supply Output 1.23V-30V
  • DC-DC Buck Converter Step Down Module , IC Module LM2596 Power Supply Output 1.23V-30V
DC-DC Buck Converter Step Down Module , IC Module LM2596 Power Supply Output 1.23V-30V
Ürün ayrıntıları:
Place of Origin: guangdong
Marka adı: dewang
Sertifika: ce
Model Number: Z0039
Ödeme & teslimat koşulları:
Minimum Order Quantity: 50 pcs
Fiyat: $1.14
Packaging Details: 15cm x 15cm x 3cm (5.91in x 5.91in x 1.18in)
Delivery Time: 5days
Supply Ability: 3,0000 pcs per month
İletişim
Detaylı ürün tanımı
Vurgulamak:

chip module

LM2596 DC-DC 3.2-40V Adjustable Step-down Power Supply Module
Description:



Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short circuit protection: current limiting, since the recovery
Operating temperature: Industrial grade (-40  to +85 ) (output power 10W or less)
Full load temperature rise: 40
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Dynamic response speed: 5% 200uS
Input voltage:
3.2-40V
3.2-40VOutput voltage:1.5-35V(Adjustable)
Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)
Dimension:43*20*14mm(L*W*H)


1x DC-DC Buck Converter Step Down Module LM2596 Power Supply Output 1.23V-30V


DC-DC Buck Converter Step Down Module , IC Module LM2596 Power Supply Output 1.23V-30V 0DC-DC Buck Converter Step Down Module , IC Module LM2596 Power Supply Output 1.23V-30V 1DC-DC Buck Converter Step Down Module , IC Module LM2596 Power Supply Output 1.23V-30V 2
