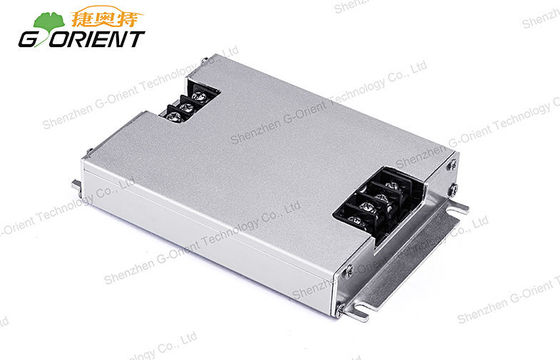

Bus LED Signs IP 20 Switch Power Supply Various Range From 84W to 200W

Ürün ayrıntıları:

Ödeme & teslimat koşulları:

Minimum Order Quantity:	10pcs
Fiyat:	negotiable
Packaging Details:	30pcs/15Kgs / CARTONS
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, Paypal, L/C, Western Union
Supply Ability:	50,000pcs per month

İletişim

Detaylı ürün tanımı

Product Name:	Switch power supply	Output power:	100W
Input:	9-36V DC	Output:	5V DC / 20A
Size:	12010018mm	High efficiency:	94%
Vurgulamak:	high power switching power supply , single output switching power supply

Bus LED Signs IP 20 Switch Power Supply Various Range From 84W to 200W

Features:

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Input reverse connect protection

* High efficiency 94% & small size

* Low output ripple and noise

* Aluminum metal shell,natural cooling

* Through the EMC certification

* 2 years warranty

Applications:

1. LED display board

2. Bus LED signs

3. Car LED dispaly

4. New energy products

5. LED electronic signs

6. Car audio

7. Other energy-saving appliances

Specifications:

Switching power supply		NHD100-5-A
OUTPUT	DC Voltage	5V
	Current Range	0~20A
	Rated Current	20A
	Rated Power	100W
	Ripple & Noise(max.)	<100mVp-p
	Voltage set point accuracy	+/- 3.0%Vo max
	Over-current protection	>120%io,hiccup
	Line Regulation	0.2%Vo max
	Load Regulation	0.2%Vo max
	Short-circuit protection	Hiccup
	Hold up time	>8mS
	Overshoot and undershoot	< +/- 5.0%
INPUT	Voltage Range	DC9-36V
	Frequency Range	BW=20MHz
	Efficiency(Typ.)	94%
	DC Current	<2.9A
	Inrush Current(Typ.)	100A at DC Cold start
	Leakage Current	Input-Output< 0.2mA ; Input-PG:<0.3mA
Environment	MIBF	>2 million hrs
	Temp.Coefficient	< 0.02%/℃
	Storage Temperature range	-55 ~ +115℃
	Operaing board Temperature range	-30 ~ +75℃
Safety	Safety standards	CE
Safety	Withstand Voltage	DC40V
Others	Dimension	1208018mm (LWH)
Others	Packing	0.5kg; 30pcs/15Kgs
