Place of Origin: | China |
Marka adı: | UPSEN |
Sertifika: | CE, ISO, RoHS |
Model Number: | Queen Star Series 1-3Kva |
Minimum Order Quantity: | 5pcs |
---|---|
Fiyat: | Negotiation |
Packaging Details: | Cartons & Wooden Pallet |
Delivery Time: | 7-15 Days |
Payment Terms: | T/T, LC, WU, Money Gram etc |
Supply Ability: | 50,000pcs/Month |
Type: | Online | Output Power Factor: | 0.8 |
---|---|---|---|
Phase: | Single Phase | Protection: | Over Load/Current/Voltage, Short Circuit etc |
Display: | Digital LCD Display | H.S. Code: | 8504402000 |
Vurgulamak: | true online double conversion ups,commercial ups systems |

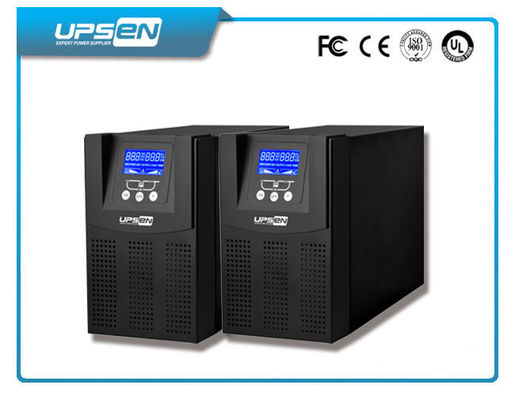

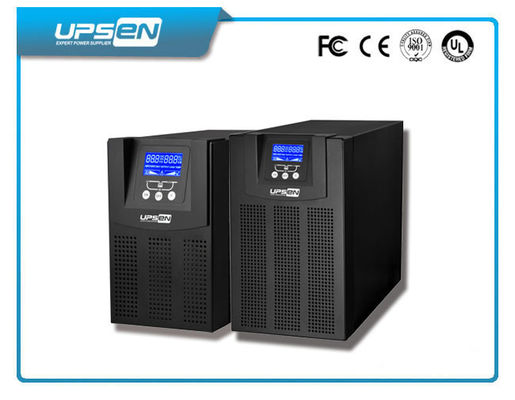

Small 2KVA / 1600W Computer Uninterruptible Power Supply With RJ11 / RJ45 / RS232
Model: High Frequency Online UPS Queen Star Series 1K-3Kva (1ph in/1ph out)
Quick Read
1: Online UPS with large LCD Screen and LED Display for UPS status
2: UPS with auto DC restart function when AC Power Off
3: UPS with RJ11, RJ45, RS232, USB and SNMP Ports
4: UPS with SNMP Card to remotely manage and monitor UPS
5: UPS with IGBT and MCU Tech
Key Features:
DSP Technology: The advanced DSP digital control technology enable UPS more stable performance.
Environment Friendly: This UPS is eco-designed and manufactured to meet the China local pollution control requirement of Electronic Products, which means it will cause no harm to environment and human beings in normal usage.
Active input power factor correction (PFC): Digitalized control of the PFC enable the UPS to keep input power factor above 0.99 to prevent possible electric grid pollution and meanwhile mostly save the cost.
Widened range of input voltage and frequency: We intentionally widen the range of input factors to make sure the UPS can apply to various environment, which will effectively sustain the battery charging even in unstable power environment so that the service life of the UPS could be obviously prolonged.
Zero power switch delay: When the utility power fails, UPS will automatically switch from AC mode to battery mode with no delay, which will ensures stable power supply of operating system.
Adaptive Load Management: This technology allows the UPS to be set up at a fixed 50Hz or 60Hz output, while it also can intelligently monitors power usage and automatically sheds and reconnects loads in order to prevent generator overload.
Sufficient Expansion Slots: The pre-allocated smart slots enable flexibility in choice of USB cards,AS400 cards, CMC monitoring cards, SNMP cards, RS485 cards and EMD environment monitoring cards.
The load power factor is 0.8: it adapts the features of most current electric equipment and elevates the load-bearing capacity of the machines.
Support the Generators: The wide range of input voltage and frequency can effectively separate the harmful electric wave produces by the generators and provide safe and reliable power supply.
Large-screen LCD
Technical Specification
MODEL | Q1K | Q1KL | Q2K | Q2KL | Q3K | Q3KL | ||
Rated capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | |||||
Input | Voltage | 115 - 300Vac | ||||||
Frequency | 40-60Hz / 50-70Hz | |||||||
Power factor | 0.99 | |||||||
Output | Voltage | 220/230Vac(1±2%) | ||||||
Frequency |
Synchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode) |
|||||||
On-load factor | 0.8 | |||||||
Overload rating | 125% overload,1min | |||||||
Battery | Type | Valve-control lead acid maintenance-free battery | ||||||
Back up time |
> 11min (half load) |
External |
> 11min (half load) |
External |
> 11min (half load) |
External | ||
Rated voltage | 36V | 72V | 96V | |||||
Transfer time | 0 | |||||||
Operating environment | Humidity: 20%-90%, Temperature:0oC-40oC | |||||||
Size (WxDxH)mm | 350 x 144 x 229 | 424 x 190 x 328 | 424 x 190 x 328 | |||||
Net Weight(kg) | 11.5 | 5.7 | 22.2 | 10 | 26.3 | 10 |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests. 7: Free OEM & ODM Service
8: Competitive price, quality and mature products
