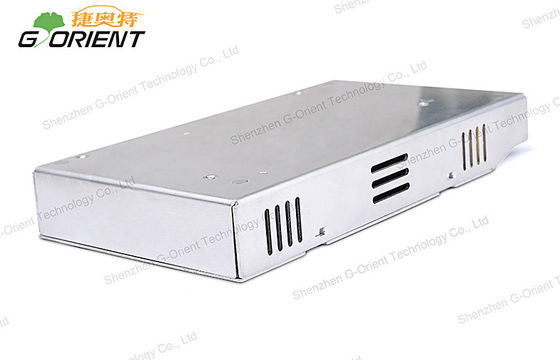

Thickness 30mm Single Output Regulated Power Supply 200Watts for LED Display

Thickness 30mm Single Output Regulated Power Supply 200Watts for LED Display

  • Thickness 30mm Single Output Regulated Power Supply 200Watts for LED Display
  • Thickness 30mm Single Output Regulated Power Supply 200Watts for LED Display
Thickness 30mm Single Output Regulated Power Supply 200Watts for LED Display
Ürün ayrıntıları:
Place of Origin: China
Marka adı: G-ORIENT
Sertifika: ISO9001 / CE / ROHS / FCC
Model Number: NHI200-5-A
Ödeme & teslimat koşulları:
Minimum Order Quantity: 10pcs
Fiyat: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS,Carton Size:33*20*18cm
Delivery Time: 10 - 15 working days after received your payment
Payment Terms: T/T, Paypal, Western Union, L/C
Supply Ability: 50,000pcs per month
İletişim
Detaylı ürün tanımı
Size: 190*85*30mm High efficienc: 85%
Output Type: Single IP Grade: IP20
Output Power: 200W Input: 200-240V AC
Output: 5V/40A Case material: Metal, aluminium
Vurgulamak:

led light power supply

,

led power supplies





Thickness 30mm Single Output Regulated Power Supply 200Watts for LED Display​





Applications:

* urban landscape lighting

* LED Lighting

* Stage

* Military project

* Communication security equipment

* indoor and outdoor advertising screens

* New energy and other Various industries





Features:

* Fixed switching frequency at 90KHz

* Low cost,high reliability

* Protections:Short circuit / Overload / Over voltage / Over temperature

* Cooling by free air convection

* Withstand 300vac surge input for 5 second

* 2 years warranty

* Built-in constant current limiting circuit

* 100% full load burn-in test





Specifications:

Switching power supply

 NHI200-5-A

 OUTPUT

DC Voltage

 5V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 200W

Ripple & Noise(max.)

 <250mVp-p

Voltage ADJ.Range

 4.5~5.6V

Voltage Tolerance

 +/- 2.0%

Line Regulation

 +/- 0.5%

Load Regulation

 +/- 1.0%

Setup,Rise Time

 1000ms,50ms/230VAC

Hold up time

 20ms/230VAC

 INPUT

Voltage Range

 200-240VAC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 83-88%

AC Current

 2.5A/230VAC

Inrush Current(max.)

 55A/230VAC

Leakage Current

 < 3.5mA /240VAC

 Protection

Over Load

 105 ~ 150% rated output power

 Protection type: Constant current limiting,recovers   automatically after fault condition is removed

Over Voltage

 5.75~ 7.0V

 Protection type: Shut down O/P voltage,re-power on to recover

Over Temperature

 100℃ +/- 5℃

 Protection type: Shut down O/P voltage,recovers automatically after temperature goes down

 Environment

Working Temp.

 -20 ~ +50℃ (Refer to output load derating curve)

Working Humidity

 20 ~ 90% RH, non-condensing

Storage Temp., Humidity

 -20 ~ +85℃, 10 ~ 95% RH

Temp.Coefficient

 +/-0.03%/℃ (0 ~ 50℃)

Vibration

 10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes

 Safety

Safety standards

 UL60950-1 approved

Withstand Voltage

 I/P-O/P:3KVAC  I/P-FG:1.5KVAC   O/P-FG:0.5KVAC

Isolation Resistance

 I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH

 Others

MTBF

 271.9K hrs min. MIL-HDBK-217F(25℃)

Dimension

 190*85*30mm (L*W*H)

Packing

 0.8kg; 20pcs/16Kgs

 Note

1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.

3. Tolerance: includes set up tolerance,line regulation and load regulation.

4. Please connect positive pole of input voltage with mark”L” of terminal block,connect negative pole of input voltage with mark”N” of terminal block,using DC voltage for input voltage







Competitive Advantage:

* CE / ROHS / FCC approval* synchonous rectification

* High efficiency up to 85%

* Protections:Short circuit / Overload / Over voltage / Over temperature

* Ultra-thin 30mm

* Ultra-low start up temp.(- 40℃)

* Small size,ultra-light and easy to install





Company Advantage:

* High quality products

* Short lead time

* Professional R&D team

* Standardized production process
