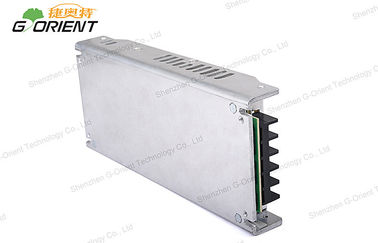

High Reliability Single Output Switching Power Supply 252W DC4.2V 60A

High Reliability Single Output Switching Power Supply 252W DC4.2V 60A

High Reliability Single Output Switching Power Supply 252W DC4.2V 60A

Ürün ayrıntıları:

Place of Origin: China
Marka adı: G-ORIENT
Sertifika: ISO9001 / CE / ROHS / FCC
Model Number: NHI300-4.2-A

Ödeme & teslimat koşulları:

Minimum Order Quantity: 10pcs
Fiyat: negotiable
Packaging Details: 20pcs/20Kgs / CARTONS,Carton Size:31*21*24cm
Delivery Time: 10 - 15 working days after received your payment
Payment Terms: T/T, Paypal, Western Union, L/C
Supply Ability: 50,000pcs per month
Şimdi başvurun
Detaylı ürün tanımı
Input: 200-240V AC Output: 4.2V DC / 60A
Operating temperature: -40℃ ~ +60℃ Standard: CE / ROHS / FCC
Output Power: 252W Ripple & Noise: ≤250mVp-p
Size: 196*110*30mm High efficiency: 85%



High Reliability Single Output Switching Power Supply 252W DC4.2V 60A ​



* Products can be used to street lamps, lawn lamps, sunlight lamps, LED lighting
*Adornment: LED lamp, LED luminaire , LED strips, LED screens, advertisement screens
*Industrial electrical products, machinery and electrical equipment, security system, air purifier
Competitive Advantage:

* CE / ROHS / FCC approval
* 2-3 years warranty
* synchonous rectification
* High efficiency up to 85%
* Protections:Short circuit / Overload / Over voltage / Over temperature

* Ultra-thin 30mm
* Ultra-low start up temp.(- 40℃)
* Small size,ultra-light and easy to install
* AC input range selectable by switch
* Protections:Short circuit / Overload / Over voltage / Over temperature

* 100% full load burn-in test
* Fixed switching frequency at 90KHz
* Built-in constant current limiting circuit

Cooling by free air convection
* Withstand 300vac surge input for 5 second



Switching power supply



DC Voltage


Current Range


Rated Current


Rated Power


Ripple & Noise(max.)


Voltage ADJ.Range


Voltage Tolerance

 +/- 2.0%

Line Regulation

 +/- 0.5%

Load Regulation

 +/- 1.0%

Setup,Rise Time


Hold up time



Voltage Range


Frequency Range




AC Current


Inrush Current(max.)


Leakage Current

 < 3.5mA /240VAC


Over Load

 105 ~ 150% rated output power

 Protection type: Constant current limiting,recovers   automatically after fault condition is removed

Over Voltage

 5.2~ 6.3V

 Protection type: Shut down O/P voltage,re-power on to recover

Over Temperature

 90℃ +/- 5℃

 Protection type: Shut down O/P voltage,recovers automatically after temperature goes down


Fan on/off control(Typ.)

RTH2≧50℃ Fan on,≦45℃ Fan off


Working Temp.

 -20 ~ +60℃ (Refer to output load derating curve)

Working Humidity

 20 ~ 90% RH, non-condensing

Storage Temp., Humidity

 -20 ~ +85℃, 10 ~ 95% RH


 +/-0.03%/℃ (0 ~ 50℃)


 10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes


Safety standards

 UL60950-1 approved

Withstand Voltage


Isolation Resistance

 I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH



 271.9K hrs min. MIL-HDBK-217F(25℃)


 190*110*30mm (L*W*H)


 1.0kg; 20pcs/20Kgs


1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.

3. Tolerance: includes set up tolerance,line regulation and load regulation.

4. Please connect positive pole of input voltage with mark”L” of terminal block,connect negative pole of input voltage with mark”N” of terminal block,using DC voltage for input voltage


Company Advantage:
* High quality products
* Short lead time
* Professional R&D team
* Standardized production process
