Place of Origin: | China |
Marka adı: | G-ORIENT |
Sertifika: | ISO9001 / CE / ROHS / FCC |
Model Number: | NHD200-4.5-E |
Minimum Order Quantity: | 10pcs |
---|---|
Fiyat: | negotiable |
Packaging Details: | 20pcs/12Kgs / CARTONS |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, Paypal, L/C, Western Union |
Supply Ability: | 50,000pcs per month |
Product Name: | Single output switching power supply | Size: | 168*80*18mm |
---|---|---|---|
Output power: | 180W | High efficiency: | 94% |
Input: | 9-36V DC | Output: | 4.5V DC / 40A |
Application: | Indoor | Ripple & Noise: | ≤100mVp-p |
Standard: | CE / ROHS / FCC | ||
Vurgulamak: | led light power supply,adjustable power supply |

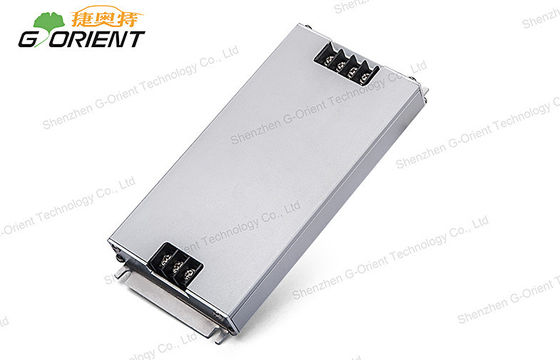

Car LED Display Single Output Switching Power Supply DC4.5V 40A Elegant Design
Features:
* To prevent car screen flower screen, the splash screen and two horizontal line design
* Through the EMC certification
* 2 years warranty
* Input reverse connect protection
* Aluminum metal shell,natural cooling
* High efficiency 94% & small size
* Low output ripple and noise
Applications:
1. Automobile
2. Ship
3. Electric cars
4. New energy products
5. LED electronic signs
6. Car audio board
7. Other energy-saving appliances
Specifications:
Switching power supply |
NHD-200-4.5E |
|
OUTPUT |
DC Voltage |
4.5V |
Current Range |
0~20A x 2 |
|
Rated Current |
40A (2 independent output) |
|
Rated Power |
180W |
|
Ripple & Noise(max.) |
<200mVp-p |
|
Voltage set point accuracy |
+/- 3.0%Vo max |
|
Over-current protection |
>120%io,hiccup |
|
Line Regulation |
0.2%Vo max |
|
Load Regulation |
0.2%Vo max |
|
Short-circuit protection |
Hiccup |
|
Hold up time |
>8mS |
|
Overshoot and undershoot |
< +/- 5.0% |
|
INPUT |
Voltage Range |
DC9-36V |
Frequency Range |
BW=20MHz |
|
Efficiency(Typ.) |
94% |
|
DC Current |
<25A |
|
Inrush Current(Typ.) |
100A at DC Cold start |
|
Leakage Current |
Input-Output< 0.2mA ; Input-PG:<0.3mA |
|
Environment |
MIBF |
>2 million hrs |
Temp.Coefficient |
< 0.02%/℃ |
|
Storage Temperature range |
-55 ~ +115℃ |
|
Operaing board Temperature range |
-25 ~ +65℃ |
|
Safety |
Safety standards |
CE |
Withstand Voltage |
DC40V |
|
Others |
Dimension |
152*100*18mm (L*W*H) |
Packing |
0.6kg; 20pcs/12Kgs |
Competitive Advantage:
* Low output ripple and noise
* CE / ROHS / FCC approval
* Output over-current,short-circuit,over-load,over-voltage protection
* Ultra-thin 18mm
* High efficiency up to 94%
* The two level output over voltage protection
Company Advantage:
* Short lead time
* Professional R&D team
* High quality products
* Standardized production process
