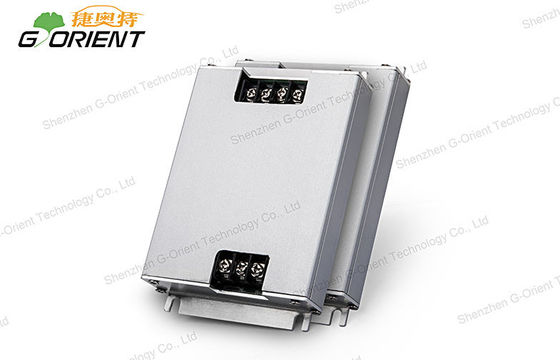

Aluminium Case Variable Switching Power Supply 100W with Thickness 18mm

Aluminium Case Variable Switching Power Supply 100W with Thickness 18mm

Aluminium Case Variable Switching Power Supply 100W with Thickness 18mm

Ürün ayrıntıları:

Place of Origin: China
Marka adı: G-ORIENT
Sertifika: ISO9001 / CE / ROHS / FCC
Model Number: NHD100-5-A

Ödeme & teslimat koşulları:

Minimum Order Quantity: 10pcs
Fiyat: negotiable
Packaging Details: 20pcs/12Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
Şimdi başvurun
Detaylı ürün tanımı
Output power: 100W Input: 9-36V DC
Output: 5V DC / 20A Operating temperature: -40℃ ~ +60℃
Size: 120*80*18mm High efficiency: 94%
Warranty: 2 Years Application: On-board screen, Taxi LED sign





Aluminium Case Variable Switching Power Supply 100W with Thickness 18mm​





Applications:

This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.





Competitive Advantage:

* CE / ROHS / FCC approval

* Output over-current,short-circuit,over-load,over-voltage protection

* Ultra-thin 18mm

* The two level output over voltage protection

* High efficiency up to 94%

* Low output ripple and noise





Specifications:

Switching power supply

 NHD100-5-A

 OUTPUT

DC Voltage

 5V

Current Range

 0~20A

Rated Current

 20A

Rated Power

 100W

Ripple & Noise(max.)

 <100mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC9-36V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 94%

DC Current

 <2.9A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -30 ~ +75℃

 Safety

Safety standards

 CE

Withstand Voltage

 DC40V







Features:

* Input reverse connect protection

* High efficiency 94% & small size

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Low output ripple and noise

* 2 years warranty

* Aluminum metal shell,natural cooling

* Through the EMC certification





Company Advantage:

1. Protection of your sales area,ideas of design and all your private information

2. Your inquiry related to our products or price will be replied in 24hrs

3. Top Quality+Reasonable Price+Responsible After Service=Successful & Win

4. OEM&ODM,any your customized lightings we can help you to design and put into product

5. Distributorship are offered for your unique design and some our current models
