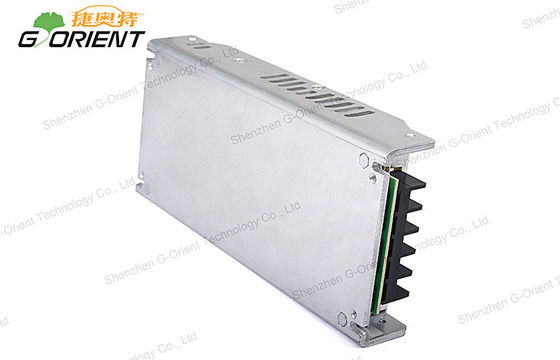

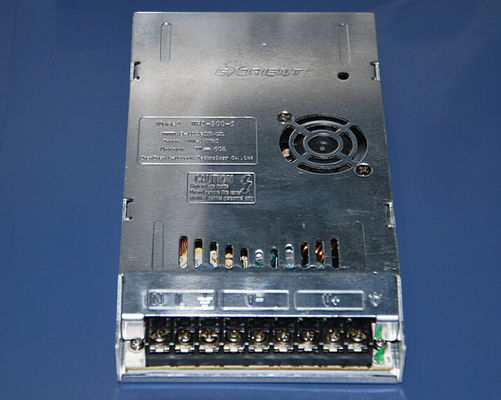

CE RoHS FCC high voltage power supply 300Watt for Indoor LED Display

CE RoHS FCC high voltage power supply 300Watt for Indoor LED Display

  • CE RoHS FCC high voltage power supply 300Watt  for Indoor LED Display
  • CE RoHS FCC high voltage power supply 300Watt  for Indoor LED Display
CE RoHS FCC high voltage power supply 300Watt  for Indoor LED Display
Ürün ayrıntıları:
Place of Origin: China
Marka adı: G-ORIENT
Sertifika: ISO9001 / CE / ROHS / FCC
Model Number: NHI300-5-A
Ödeme & teslimat koşulları:
Minimum Order Quantity: 10pcs
Fiyat: negotiable
Packaging Details: 20pcs/20Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
İletişim
Detaylı ürün tanımı
Size: 196*110*30mm Output power: 300W
High efficiency: 85% Input: 200-240V AC
Operating temperature: -40℃ ~ +60℃ Output: 5V DC / 60A
Application: Indoor Ripple & Noise: ≤250mVp-p
Vurgulamak:

universal power supply

,

high voltage power supply



CE RoHS FCC high voltage power supply 300Watt  for Indoor LED Display





Features:

* Protections:Short circuit / Overload / Over voltage / Over temperature

* Cooling by free air convection

* Withstand 300vac surge input for 5 second

* Built-in constant current limiting circuit

* 100% full load burn-in test

* Fixed switching frequency at 90KHz

* Low cost,high reliability

* 2 years warranty





Company Advantage:

* High quality products

* Short lead time

* Professional R&D team

* Standardized production process





Specifications:

Switching power supply

 NHI300-5-A

 OUTPUT

DC Voltage

 5V

Current Range

 0~60A

Rated Current

 60A

Rated Power

 300W

Ripple & Noise(max.)

 <200mVp-p

Voltage ADJ.Range

 4.5~5.6V

Voltage Tolerance

 +/- 3.0%

Line Regulation

 +/- 0.5%

Load Regulation

 +/- 2.0%

Setup,Rise Time

 1000ms,50ms/230VAC

Hold up time

 20ms/230VA;

 INPUT

Voltage Range

 200-240VAC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 81-85%

AC Current

 4A/230VAC

Inrush Current(max.)

 60A/230VAC

Leakage Current

 < 3.5mA /240VAC

 Protection

Over Load

 105 ~ 135% rated output power

 Protection type: Constant current limiting,recovers   automatically after fault condition is removed

Over Voltage

 5.75 ~ 7.5V

 Protection type: Shut down O/P voltage,re-power on to recover

Over Temperature

 90℃ +/- 5℃

 Protection type: Shut down O/P voltage,recovers automatically after temperature goes down

Function

Fan on/off control(Typ.)

RTH2≧50℃ Fan on,≦45℃ Fan off

 Environment

Working Temp.

 -20 ~ +60℃

Working Humidity

 20 ~ 90% RH, non-condensing

Storage Temp., Humidity

 -20 ~ +85℃, 10 ~ 95% RH

Temp.Coefficient

 +/-0.03%/℃ (0 ~ 50℃)

Vibration

 10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes

 Safety

Safety standards

 UL60950-1 approved

Withstand Voltage

 I/P-O/P:3KVAC  I/P-FG:1.5KVAC   O/P-FG:0.5KVAC

Isolation Resistance

 I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH

 Others

MTBF

 234.3K hrs min. MIL-HDBK-217F(25℃)

Dimension

 196*110*30mm (L*W*H)

Packing

 1.0kg; 20pcs/20Kgs

 Note

1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.

3. Tolerance: includes set up tolerance,line regulation and load regulation.

4. Please connect positive pole of input voltage with mark”L” of terminal block,connect negative pole of input voltage with mark”N” of terminal block,using DC voltage for input voltage







Competitive Advantage:

* Ultra-thin 30mm

* Ultra-low start up temp.(- 30℃)

* synchonous rectification

* High efficiency up to 85%

* Protections:Short circuit / Overload / Over voltage / Over temperature

* Small size,ultra-light and easy to install

* CE / ROHS / FCC approval





Applications:

* urban landscape lighting

* LED Lighting

* Military project

* Communication security equipment

* indoor and outdoor advertising screens

* New energy and other Various industries
