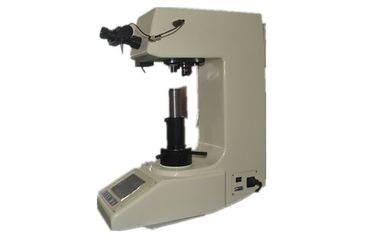

Vickers Brinell Combined Universal Hardness Tester with Automatic Turret and Bluetooth Adapter

Vickers Brinell Combined Universal Hardness Tester with Automatic Turret and Bluetooth Adapter

    • Vickers Brinell Combined Universal Hardness Tester with Automatic Turret and Bluetooth Adapter
    • Vickers Brinell Combined Universal Hardness Tester with Automatic Turret and Bluetooth Adapter
  • Vickers Brinell Combined Universal Hardness Tester with Automatic Turret and Bluetooth Adapter

    Ürün ayrıntıları:

    Place of Origin: DONGGUAN CHINA
    Marka adı: SINOWON
    Sertifika: CE
    Model Number: VB62.5

    Ödeme & teslimat koşulları:

    Minimum Order Quantity: 1 Set
    Packaging Details: Plywood Box
    Delivery Time: 10 - 14 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 50 Sets per Month
    Şimdi başvurun
    Detaylı ürün tanımı
    Turret Control: Motorized Switch Eyepiece: 10X Digital Eyepiece
    Max Height of Specimen: 150mm Horizontal Space: 125mm
    Magnification: 5x/10x Dwell Time: Adjustable 1-60s
    Instrument Dimension: 535 x190 x585mm Brinell Hardness Range: (8-650) HBW
    Vickers Hardness Range: 8HV-2967HV

    ● Vicky VB62.5 Equips with blue tooth module, realize the wireless data transfer to computer and mini printer.


    ● Motorized turret, close loop loading system and touch screen/control panel input.


    ● Brinell and Vickers test methods, just replace indenter to do specific testing.


    ● Standard delivery comes with 5x and 10x objectives, all of them can do measurement, indenter and objective switches motorized.


    ● Available to preset dwell time, illumination brightness.


    ● Innovative design of color touch screen, shows force selection, dwell time, hardness conversion, etc.


    ● Hardness result can be converted to HK, HBW, HRA, HRC, HV and superficial rockwell scales.


    ● In order to avoid operation error, optional measurement software MV-200S and MB is a good choice.





    Wide application:



    mainly used to Test very thin materials like foils, thin pieces,coatings layers,etc;



    Measuring hardness of the surface of a part,small parts or small areas;


    Measuring individual micro-structures;


    Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.





    Technical Data:



    Name

    Vickers Brinell Combined Digital Hardness Tester with Automatic Turret and Bluetooth Adapter

    Model

    Vicky VB-62.5

    Code #

    821-300

    Brinell Force

    Kgf

    5,6.25,10,15.625,30,31.25,62.5

    N

    49.0,61.3,98.0,153.2,294.2,306.5,612.9

    Brinell Scales

    HBW5/62.5,HBW2.5/62.5,HBW2.5/31.25,HBW2.5/15.625,HBW2.5/6.25,HBW1/30,HBW1/10,HBW1/5

    Vickers Force

    Kgf

    1,2,2.5,3,5,10,20,30,50

    N

    9.8,19.6,24.5,29.4,49.0,98.0,196,294,490

    Brinell Hardness Range

    (8-650) HBW

    Vickers Hardness Range

    8HV-2967HV

    Loading Control

    Automatic (Loading/Dwell/Unloading)

    Turret Control

    Motorized Switch

    Magnification

    Observation:5x/10x; Measurement:5x/10x

    Eyepiece

    Digital Eyepiece 10x

    Dwell Time

    Adjustable 1-60s

    Hardness Conversion Scales

    HRC,HV,HBS,HBW,HK,HRA,HRD,HR15N,HR30N,

    HR45N,HS,HRF,HR15T,HR30T,HR45T,HRB

    Conversion Standard

    ASTM,DIN

    Operation Language

    Chinese, Language, German, Turkish, Korean, etc.

    LCD Screen

    5.2" Color touch screen,Resolution:640*480

    Max Height of Specimen

    150mm

    Throat

    125mm

    Power supply

    AC220V/50HZ;110V/60Hz

    Instrument Dimension

    535 x190 x585mm

    Packing dimension

    610 x450 x770mm

    Gross/Net weight

    47Kg/43Kg

    Execute Standard

    GB/T4340, ISO6506/6507,ASTM E10-12/E92   JIS Z2243
