Gaoxin Endüstri Parkı, Guangming Yeni Bölgesi, Shenzhen Şehri, Guangdong Eyaleti, Çin | Angelwang66@126.com |
Place of Origin: | Shenzhen,China |
Marka adı: | RAYTOP |
Sertifika: | CE, RoHS, FCC |
Model Number: | ETL1600400C |
Minimum Order Quantity: | 2K |
---|---|
Fiyat: | Negotiable |
Packaging Details: | Gift box or blister,20 pcs per carton, customer package available. |
Delivery Time: | 20-25 work days. |
Payment Terms: | T/T, L/C |
Supply Ability: | 30000 Pcs monthly. |
AC Cable: | 1.2M | Application: | Delta, HP, IBM, Gateway, Liteon |
---|---|---|---|
Approval: | CE, RoHS, FCC, SAA, UL | DC Cable: | 1.2M |
EMI Standards: | FCC Part 15B | Function: | Automatic |
Input: | AC100-240V | Output Power: | 90W |
Plug: | EU, US, SAA, CCC, UK | Product Name: | Universal Laptop Power Adapter |
Protection: | Short Circuit, Over Voltage, Over Current | Operating Temperature: | 0~40℃ |
Vurgulamak: | Universal Notebook adaptörü,Evrensel Laptop güç kaynağı |

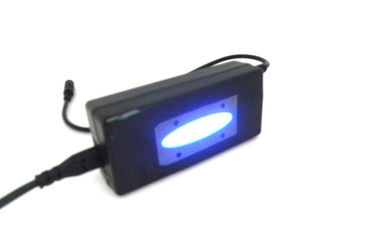

UK / US 90W Universal Laptop Power Adapter Automatic 5V 2.1A USB With LED
Quick Detail:

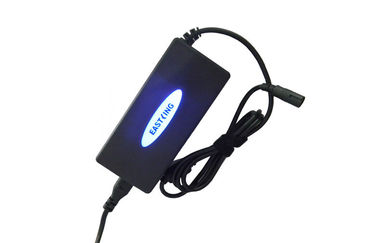

Universal laptop adapter 90W, automatic voltage DC 15-20V, with 1x USB port, 5V, 2.1A. The adapter has unique design come with LED luminous epoxy on the top cover. Customer logo will be added in the center of the LED ring to promote the brand image.
Specs:
Input: AC100-240V, 1.8A max.
Output: DC15/16/18/18.5/19/20V
Power Cord:
AC Cable: 2x0.75mm2, length: 1.2M
DC Cable: 18AWG, Copper, length: 1.2M
AC Plug: EU, UK, US, SAA, CCC
Features:
- Worldwide input voltage 100~240Vac;
- High efficiency, up to 88%;
- Exclusive model, attractive appearance.
- Protection: Short circuit protection, over voltage protection, over current protection.
- 10 different output connectors for top brands laptops.
- MTBF: 50,000 hours.
Approval: CE, RoHS, FCC
Warranty: 2 years

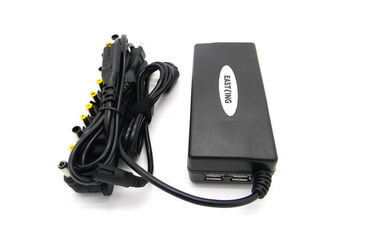

Contents: 1Adapter + 1AC Cable+1DC Cable +10 Connectors
Description:
This is an universal laptop AC Adapter come with unique design and 10 exchangeable and automatic tips, have great compatibility with most top brand notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. This adapter have automatic output voltage 15/16/18/18.5/19/20. Also it has compact design and high efficiency, very easy to carry and can charge your laptops quickly on going.
Note: please select correct output voltage before connecting the adapter with your laptops.
Applications:
External power supply, used to charge most top brand laptops/notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. It can also charge personal devices simultaneously like smart phones, tablet, iPhone 4g/4s, iPhone 5g/5s, iPad, iPod and so on when using your laptops.
Specifications:
Input |
Rated Input Voltage |
AC100~240V |
Input Voltage Range |
AC 90~264V |
|
Rated Frequency |
50/60 Hz |
|
Input Frequency Range |
47~63 Hz |
|
Input AC Current |
1.8A |
|
Inrush Current |
30A |
|
Output |
Rated Output Voltage |
DC 15~20V |
Output Voltage |
DC15/16/18/18.5/19/20V |
|
Rated Output Current |
4.5A |
|
USB Output |
5V 1.0A + 5V 2.1A |
|
Rated Power |
90W |
|
Ripple and Noise |
120mV p-p |
|
Standby Power Consumption |
0.5W |
|
Turn-on |
5s |
|
Hold-up |
20s |
|
Over Voltage Protection |
Yes |
|
Over Current Protection |
Yes |
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
Reliability |
Hi-pot |
3000Vac |
Insulation Resistance |
Input to output at 500Vdc |
|
Leakage Current |
5mA |
|
EMI Standards |
FCC Part 15B Class B |
|
RoHS Compliant |
Yes |
|
MTBF |
50,000 hours |
|
Burn-in |
40+/-5 ℃, full load, 4 hours |
|
Drop Test |
6 direction, each one time from height 1.0M |
|
Environmental |
Operating Temperature |
0~40℃ |
Operating Humidity |
10~80% |
|
Storage Temperature |
-20~65℃ |
|
Storage Humidity |
0~90% |
|
Safety Approvals |
CE, RoHS, FCC, UL, SAA |
|
Warranty |
2 Years |
Competitive Advantage:
- Open private model w/o extra cost for you;
- 0.3% free backup of order quantity;
- Direct factory price without middle man.
- High performance-to-price ratio;
- Perfect after-sale service
