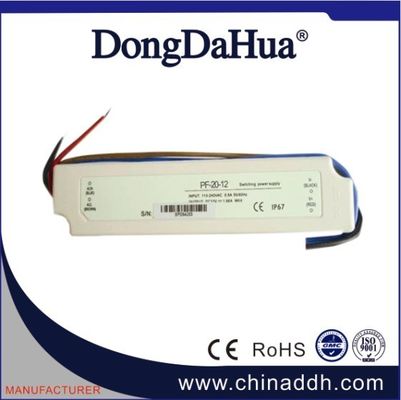

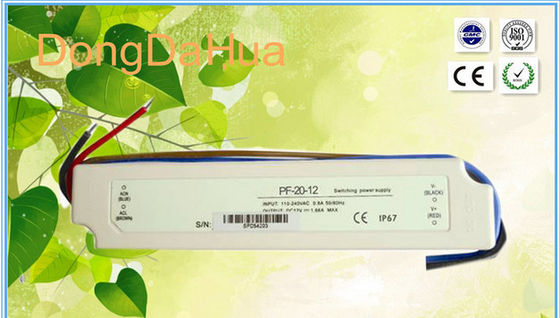

12V Constant Voltage Waterproof LED Driver

12V Constant Voltage Waterproof LED Driver

    • 12V Constant Voltage Waterproof LED Driver
    • 12V Constant Voltage Waterproof LED Driver
  • 12V Constant Voltage Waterproof LED Driver

    Ürün ayrıntıları:

    Place of Origin: China
    Marka adı: DongDaHua
    Sertifika: CE,RoHS
    Model Number: PF-20-12

    Ödeme & teslimat koşulları:

    Minimum Order Quantity: 10
    Fiyat: /
    Packaging Details: as for your requirement
    Delivery Time: as per your order quantity
    Payment Terms: TT,paypal
    Supply Ability: 4000pcs/Day
    Şimdi başvurun
    Detaylı ürün tanımı
    Product Name: Constant Voltage LED Driver DC output power: 20W
    DC output voltage: 12V 24V Input frequency range: 47Hz~63Hz
    Waterproof grade: IP67 Input voltage range: 110-240V AC

    High Brightness 12V Constant Voltage LED Driver 20W Waterproof





    Application:

    It’s suitable for an extremely wide range of applications, including:
    LED, CCTV camera;
    Communications and security products;
    LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.





    Features:



    * constant voltage design
    * Universal AC input/Full range
    * Withstand 300VAC surge input for 5 seconds
    * Protections:Short circuit/Overload/Over voltage
    * Cooling by free air convection
    * Small and compact size
    * Fully encapsulated with IP67 level(Note.7)
    * Fully isolated plastic case
    * Suitable for LED lighting and moving sign applications
    * 100% full load burn-in test
    * Low cost,high reliability
    * 2 years warranty

    12V Constant Voltage Waterproof LED Driver





    Descriptions:



    Parameter

    Model: PF-20

    DC output voltage

    12V±5%

    24V±5%

    Rated output current

    1.66A

    0.83A

    Output current range

    0-1.66A

    0-0.83A

    Ripple and Noise

    120mVp-p



    DC output power

    20W

    202

    Efficiency

    85%

    85%

    Input voltage range

    110-240V AC

    Short-circuit protection

    Damage free short-circuit protection 3 times or more with automatic restoration

    Overload protection

    105-150% hiccup with automatic restoration

    Temp.coefficient

    ±0.03%℃ ( 0-40℃ )

    Voltage tolerance

    Input-output range: 1.5KvAC

    Working environmental temp.

    -10℃~+40℃

    Waterproof grade

    IP67

    Input frequency range

    47Hz~63Hz

    Storage temperature

    -20℃~+85℃

    Dimension

    139*30*22mm

    weight

    0.16 kg
