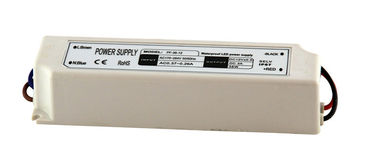

Single Output LCD Display Constant Voltage LED Driver 36W With Automatic Restoration

Single Output LCD Display Constant Voltage LED Driver 36W With Automatic Restoration

  • Single Output LCD Display Constant Voltage LED Driver 36W With Automatic Restoration
Single Output LCD Display Constant Voltage LED Driver 36W With Automatic Restoration
Ürün ayrıntıları:
Place of Origin: China
Marka adı: DongDaHua
Sertifika: CE,RoHS
Model Number: PF-36-12
Ödeme & teslimat koşulları:
Minimum Order Quantity: 10
Fiyat: /
Packaging Details: as for your requirement
Delivery Time: as per your order quantity
Payment Terms: TT,paypal
Supply Ability: 4000pcs/Day
İletişim
Detaylı ürün tanımı
Vurgulamak:

12 volt led driver

,

constant voltage led drivers



Single Output LCD Display Constant Voltage LED Driver 36W With Automatic Restoration





Quick detail:


Power: 20W
Input: AC170-264V
Output: DC 12V
Size: 139*30*20(mm)
Certificate: CE&ROHS
Warranty: 2 years





Description:



1. Protections :Short circuit/Overload/Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE& ROHS certification

7. Two years warranty




Single Output LCD Display Constant Voltage LED Driver 36W 3A For Moving Sign





Descriptions:



Parameter

Model: PF-36

DC output voltage

12V±5%

24V±5%

Rated output current

3A

1.5A

Output current range

0-3A

0-1.5A

Ripple and Noise

120mVp-p



DC output power

36W

36W

Efficiency

85%

85%

Input voltage range

110-240V AC

Short-circuit protection

Damage free short-circuit protection 3 times or more with automatic restoration

Overload protection

105-150% hiccup with automatic restoration

Temp.coefficient

±0.03%℃ ( 0-40℃ )

Voltage tolerance

Input-output range: 1.5KvAC

Working environmental temp.

-10℃~+40℃

Waterproof grade

IP67

Input frequency range

47Hz~63Hz

Storage temperature

-20℃~+85℃

Dimension

151*42*30mm

weight

0.28 kg




Application:



It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.





 Quality assurance:



Single Output LCD Display Constant Voltage LED Driver 36W With Automatic Restoration 0




Our service:


Single Output LCD Display Constant Voltage LED Driver 36W With Automatic Restoration 1






Delivery:


Single Output LCD Display Constant Voltage LED Driver 36W With Automatic Restoration 2
