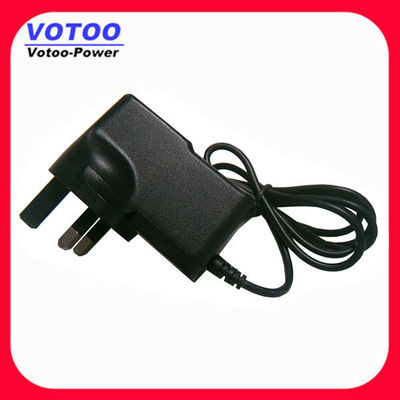

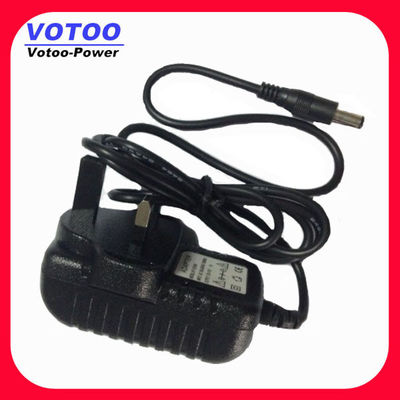

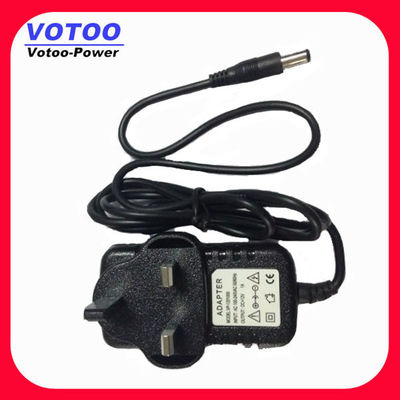

12V DC 3.0A 36W AC Wall Mount Switching Power Electronic Adapter , UK Power Adapters
Quick Detail:
-
Type: Free Samples Available 12V DC 3.0A 36W AC Wall Mount Switching Power Adapter
-
Material: PC+ABS
-
Certificate: CE & RoHS
-
OEM/ODM welcome
-
100% Full load & buring test
-
Free sample can be sent
-
Dc plug: 5.5*2.1mm,5.5*2.5mm,3.5*1.35mm, micro/mini usb etc.
-
Protections:Short circuit/Over load/Over voltage/ Over temp
Description:
Features:
Input: 100 to 240V AC,1.0-0.6A, 50 to 60Hz
Output:12V DC 3.0A
Protection: over-current, voltage and auto recovery
Output protection: over-load and short-circuit protection
AC inlet: plug-in type
Insulation Strength: Class A
Operating Temprature: -10°C~+40°C (10-90%R.H)
Storage Temprature: -40°C~+60°C (10-90%R.H)
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing
Case materials: PC, ABS, or equivalent
Packing details:1 piece per plastic bag + inner box (negotiate when order)
o High Efficiency
o Short Circuit Protection
o Over Voltage Protection
o Over Current Protection
o Green Circuit Design
o Accurate information and descriptions.
o All orders are shipped on time.
o All items are fully inspected prior to shipping to meet international standards by our QC staffs.
o All items are with CE RoHS approval to ensure the products quality.
Votoo integrated device design, low temperature rise, low calorific value.
High stability, drive stable work, output current constant, no drift.
Competitive Manufacture price
OEM and Small trial order accepted
Short Leading time
Installed with EMI filter ,minimum wave
Green Power,full complies with CE
Soft-start current can reduce the AC input impact efficiency
1. Strictly 100% full load testing and aging testing
2. Withstand 3000v high voltage
3. 12 months warranty, during warranty time, recomplenish the defaulted
products without any additional cost.
4. OEM & ODM Service Acceptable
5. Convinient to travel around the world
6. Fast delivery with good quality
Specification:
|
Input voltage:
|
100-240V AC,50/60HZ
|
|
Output:
|
12V 3A 36W
|
|
Loading regulation:
|
±5%
|
|
Over-voltage protection:
|
115%-135%^
|
|
Over-current protection:
|
130%-150%
|
|
Operating temperature:
|
-10-45°C
|
|
Storage Temperature:
|
-20-85°C
|
|
Operatingr relative humidity:
|
20%-90% RH
|
|
Withstanding voltage:
|
3,000V AC(minimum),5mA(maximum)
|
|
MTBF:
|
over 50,000 hours with full load in 25°C ambient condition
|
How to Install?
-
Connect power supply to the supplied unit.
-
Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
-
Do not install power supply in locations with high humidity, dust or strong direct sunlight.
-
The power supply should be installed in a location with good airflow.
-
Power supply can only be installed indoors.
Applications:
1. CCTV security, door access, digital camera, etc.
2. POS machine, mini printing machine, etc.
3. Electronic scale, flowerpot etc.
4. Can be suitable for Mobile phone charger, cell phone charger, MP3/MP4 player charger, digital camera, led power driver, tv power supply, cctv power supply,lcd power supply, video game player or small power electrical equipment power supply, etc
