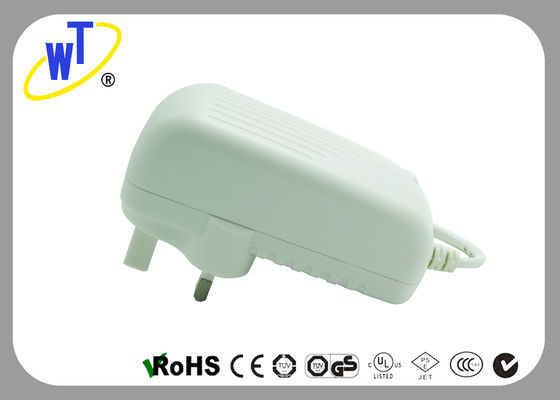

Digital Products Wall mount Power Supply 12VDC 2.5A overload protection

Digital Products Wall mount Power Supply 12VDC 2.5A overload protection

  • Digital Products Wall mount Power Supply 12VDC 2.5A overload protection
Digital Products Wall mount Power Supply 12VDC 2.5A overload protection
Ürün ayrıntıları:
Place of Origin: China
Marka adı: WT
Sertifika: UL/CE/CCC/SAA/ROHS
Model Number: WT1202500
Ödeme & teslimat koşulları:
Minimum Order Quantity: 500 pcs
Fiyat: negotiation
Packaging Details: PE bag+white box/PE bag without white box
Delivery Time: 20 Days
Payment Terms: T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability: 8000 PCS/Day
İletişim
Detaylı ürün tanımı
color: white Approval: CE
Vurgulamak:

portable power adapter

,

smart power adapter



Digital Products Wall mount Power Supply 12VDC 2.5A overload protection



Quick Details:

  • ​Input voltage: 100 to 240V AC, 50/60Hz
  • Output voltage: 12VDC 2.5A
  • Power: 30W
  • Plug type: English plug, 3 pins

Warranty:

12 months

Certification:

UL/CE/CCC/SAA/ROHS

Usage:

Digital Products

Packaging:



a. PE bag+ white box

b. PE bag without white box

Place of Origin:

China(Mainland)

Brand Name:

WT

Model Numeber:

WT1202500

MOQ:

500 pcs

Delivery Time:

20 Days

Payment Terms:

T/T(30% in advance, 70% the balance must be paid before the delivery)

Supply Ability:

8000 PCS/Day



Model I/P Condition O/P Condition Efficiency R/N Max Power
Voltage Current Regulation
Unit:(V) Unit:(A) Line(%) Load(%) min% (mVp-p) W
WTxxxyyyy 100-240V
AC 50/60Hz
1.6A Max		 3.3V-6.0V 3.00 2% 5% 77 38 18
6.1V-9.0V 3.00 2% 5% 83 38 27
9.1V-12.0V 2.50-3.00 2% 5% 83.5 38 30
12.1V-24.0V 1.25-2.50 2% 5% 83.5 38 30
24.1V-36.0V 0.83-1.25 2% 5% 83.5 38 30
36.1V-48.0V 0.62-0.83 2% 5% 83.5 38 30



Description:



1. Surface cosiness, small size and convenient carrying

2. Low cost, high reliability and all cases are covered by ultrasonic

3. Built-in OVP, OCP and SCP

4. Universal input voltage:

a. I/P voltage 100-240VAC; 50/60Hz

b. Turn on delay time≤3s

c. Inrush current≤30A/24V AC

5. O/P:

a. High accuracy and low noice

b. Hold up time ≥20mS

6. Operation model: CV

7. Environment:

a. Operation temperature: 0°C-40°C;5%-90%RH

b. Storage temperature: -20°C-85°C;5%-95%RH

8. Cooling: Natural cooling

9. Energy standard: CEC/ERP

10. Safety standard: IEC/EN60950

11. Insulation: hi-pot, 3,000V AC 60S 10mA

12. Leakage current: 0.25mA (maximum)

13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

14. RoHS compliant



Our Advantages:

  • Short Lead time
  • AC input power suitable for the world
  • Soft-start current can reduce the AC input impact efficiency
  • With short-circuit and overload protection
  • Compact size ,light weight
  • 100%full-load burning test
  • Installed with EMI filter ,minimum wave
  • Professional&experienced engineers
  • Good quality
  • Competitive price
  • Intime service
  • Free samples available
  • About 10 years experiences
  • OEM/ODM services are highly welcome
  • Flexible to meet dynamic requirements
  • High technology

Digital Products Wall mount Power Supply 12VDC 2.5A overload protection 0
