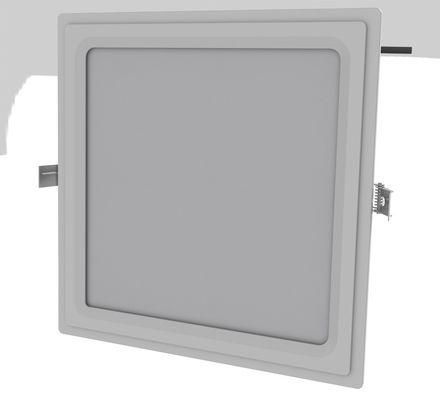

Epistar Cold White Slim square LED Panel Light with Constant Current LED Driver Ra80

Epistar Cold White Slim square LED Panel Light with Constant Current LED Driver Ra80

  • Epistar Cold White Slim square LED Panel Light with Constant Current LED Driver Ra80
Epistar Cold White Slim square LED Panel Light with Constant Current LED Driver Ra80
Ürün ayrıntıları:
Place of Origin: China
Marka adı: Ground Halo
Sertifika: TUV, CE, RoHs
Model Number: GH-PLB-6060-45W
Compatible: SAA, UL
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1pcs for sample is available
Fiyat: EXW / FOB / CNF / CIF
Packaging Details: Packing with foam and bubble wrap
Delivery Time: 7 Days
Payment Terms: T/T, PayPal, Western Union,
Supply Ability: 10,000PCS Per Month
İletişim
Detaylı ürün tanımı
Vurgulamak:

led ceiling panels

,

slim LED Panel Light

Epistar Cold White Slim square LED Panel Light  with Constant Current LED Driver Ra80





Quick Detail:



  • Product Model: GH-PLB-6060-45W
  • Luminous Way: Backlit
  • Lighting Transmittance Efficiency: Up to 93%
  • Driver: Isolated Constant Current Driver (GS/SAA/CE approval)
  • Voltage: AC85V-265V 50/60HZ
  • Warranty: 3 Years
  • Wattage: 45W
  • Protection Rate: IP50
  • Color Temperature: Warm White / Nature White / Cold White
  • Life Span: 50,000H
  • Certificate: CE, RoHs, TUV, GS
  • Compatible: SAA, UL
  • Product Size: 595mm x 595mm x 43mm
  • Led Brand: Epistar
  • LED Source: SMD3014
  • Diffuser: Japanese Import





Description:



GH-PLB-6060-45W Backlit LED Panel Light Fixture with 484 PCS 3014SMD LEDs, produces up to 4,500 lumens, available in Cool White, Natural White, or Warm White. It equip with Japanese Imported High Quality Diffuser, Optical Lens, Aluminum Heat Sink, Italian Design along with Isolated Constant Current LED driver and Taiwanese Super Bright Epistar Chip. We are boast to have plastic frame with outstanding heat dissipation. Designed for residential and commercial conventional suspended grid ceilings for new construction applications or retrofitting existing fluorescent troffer light fixtures. With stable high lumen, 120-degree beam angle, it's typically designed for Commercial Lighting. Moreover, this product is TUV, SAA, CE approved.





3-Years Warranty!  No trouble, No Worry!





Competitive Advantages:



Elegant and Elaborately design. Every detail is in result of our engineers' delicate workmanship and continuing efforts.



The luminous flux has been dramatically improved, compare to side lit LED Panel Light. It’s great to apply as commercial Lighting, and those other places need bright light.



Backlit, Japanese Imported Diffuser, integrate our engineers’ dedicated development, compose a remarkable LED Panel Lighting fixture.



Benefit from White polish plastic frame, this Backlit LED Panel Light still is easy to be suspended although it’s backlit (thickness: 42mm). Moreover, the whole panel is looked more upmarket.





When technology meets, we shall provide you a great product!



Epistar Cold White Slim square LED Panel Light with Constant Current LED Driver Ra80 0

Epistar Cold White Slim square LED Panel Light with Constant Current LED Driver Ra80 1Epistar Cold White Slim square LED Panel Light with Constant Current LED Driver Ra80 2





Specification:



A: Technical Parameter

Item  No.

GH-PLB-6060-45W

Dimension

595x595x43mm

Voltage

AC85V-265V  50/ 60HZ

Power

45W

LED  Type

SMD3014

LED  Quantity

484pcs



Luminous Flux

Warm  white

> 3825 lm

Neutral  white

> 4050 lm

Pure White

> 4275lm



Color  Temperature

(CCT)

Warm  white

2800-3500K

Neutral  white

3800-4500K

Pure White

5500- 6500K

Beam Angle

120°

Color  Rendering  Index  (CRI)

Ra 80

Power  Supply  Efficiency

>90%

LED  Luminous  Efficiency

Up  to  110 lm/W

Power  Factor  (PF)

>0.95

Total Harmonic Distortion  (THD)

≤15%

IP Rank

IP  50

Net weight

2.5kgs

Certificate

TUV/CE/RoHS



B: Mechanical Specifications

LED Driver

Isolated Constant Current LED Driver

Connection  to  Power

2X1.0mm 2PVC Cable

Housing  Processing

White  Paint  Coating

Material

PMMA, Plastic  housing

Cover

Frosty  Front Cover



Installation  Component Set

1. Recessed Installation, YES

2.Suspend Installation, Optional



C: Environmental

Temperature  Range  Operating

-20℃ to 40℃

Humidity  Range  Operating

20 % to 95 %

Temperature  Range Storage

-40℃ to 75℃

Humidity  Range Storage

10 % to  80 %



Epistar Cold White Slim square LED Panel Light with Constant Current LED Driver Ra80 3Epistar Cold White Slim square LED Panel Light with Constant Current LED Driver Ra80 4Epistar Cold White Slim square LED Panel Light with Constant Current LED Driver Ra80 5





Installation:



Warning: Before installation, please make sure the power is turned off.



Epistar Cold White Slim square LED Panel Light with Constant Current LED Driver Ra80 6





Packing Information:



Material

QTY/ CTN

Carton  Size

G.W.

Carton

1pcs

680*640*110mm

3.28kgs



Epistar Cold White Slim square LED Panel Light with Constant Current LED Driver Ra80 7





Drop and Impact Test:



  1. Each edge (as chart below) has been  tested.
  2. The appearance and Performance of the LED Panel Light  has  been rechecked  after the Test.

Epistar Cold White Slim square LED Panel Light with Constant Current LED Driver Ra80 8





Application:



Shopping Mall, Supermarket, Office, School, Library, Bathroom, Kitchen, Department Store, Restaurant, Cafeteria, Hospital, Laboratory, and Conference Room etc.



Epistar Cold White Slim square LED Panel Light with Constant Current LED Driver Ra80 9Epistar Cold White Slim square LED Panel Light with Constant Current LED Driver Ra80 10





Warranty:



3-year warranty since the date of purchase is offered for all Backlit Panel Light.





Term of Warranty:



  • Under terms of this warranty, if the product has a failure occurring under normal usage within warranty period, Ground Halo will provide free maintenance service based on the proof- documents and invoice (copy) of failure product.
  • Ground Halo will not provide paid maintenance service by under conditions within warranty.
    • Failure or damage due to force majeure.
    • Failure or damage due to transport or unloading.
    • Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
    • Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
  • Please deliver the failure product by original packing for maintenance service, Ground Halo will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.



Ground Halo reserves the right for final explanation of aforesaid terms.



Caution : Ground Halo will not be responsible for any other failure or damage by incorrectly usage.





Term of Trade:



1. Payment: T/T 30% deposit, 70% before shipment ,L/C ,western union or paypal.
2. Lead time : Within 7-20 working days after receiving the deposit
3. Samples: Can be ready in 5 working days once payment received
4. Shipping port: Shenzhen, China
5. Discounts : We offer discount for large quantity
6. Packaging: Neutral package, also can be customized according to customer requirements of Logo, Brand etc.





Why Choose Us?



  • Your inquiry related to our products or prices will be replied whitin 24 hour
s.
  • Experienced sales to answer all your inquiry in short time.

  • Clients' special requirement is accepted. We also provide Lighting Solution and recommend the best suitable lights to you.

  • Protect your sales area, ideas of design and all your private information.
