Gaoxin Endüstri Parkı, Guangming Yeni Bölgesi, Shenzhen Şehri, Guangdong Eyaleti, Çin | Angelwang66@126.com |
Place of Origin: | China |
Marka adı: | Merrytek |
Sertifika: | CE , R&TTE |
Model Number: | MC011D8 |
Minimum Order Quantity: | 100pcs |
---|---|
Fiyat: | Negotiation |
Packaging Details: | Packed in bubble bags firstly, and then reinforced with carton or outer packing |
Delivery Time: | 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 20,000pcs per Month |
Product Name: | Microwave motion sensor | Rated load: | Max.50WLED light |
---|---|---|---|
Operating Voltage: | 13 - 42vdc | Detection: | Max(D×H):16m×6m |
HF system: | 5.8GHz ±75MHz, ISM wave band | Size (L×W×H): | 82x36.5x 25.5 mm(power supply part) 53x26.1x16mm(sensor part) |
Approval: | CE & R&TTE | Operation temperature: | -20℃~50℃ |
Function: | ON-OFF 2 step dimming | IP Rating: | IP20 |
Vurgulamak: | high frequency sensor,compact motion sensor |

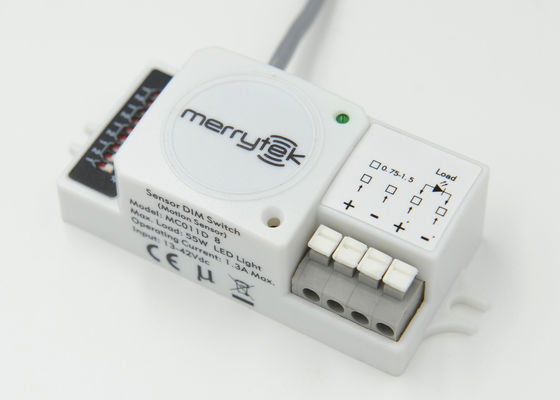

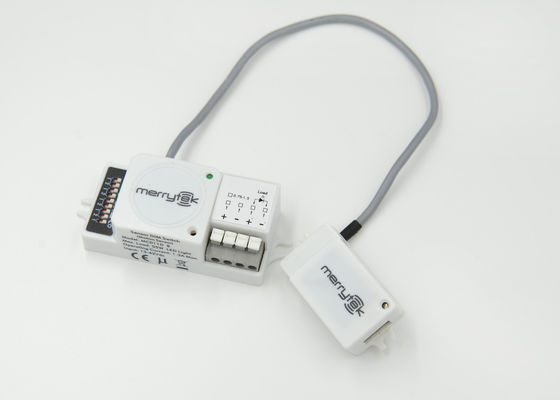

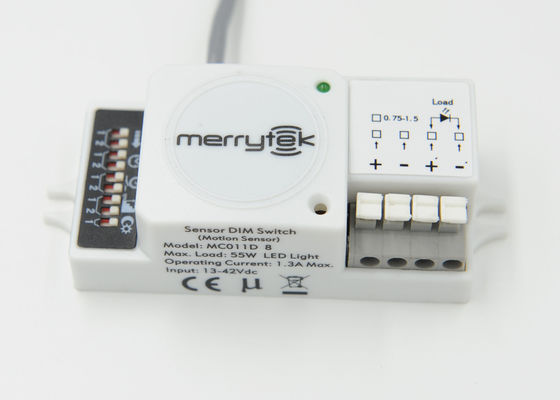

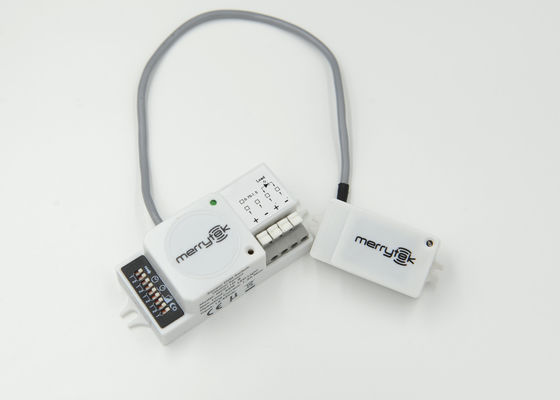

Dimming function 5.8GHz DC operation Microwave motion sensor MC011D8, CE & R&TTE
Description
On-off function
2- Step dimming function
Specifications:
Operating voltage |
13 - 42Vdc |
Rated load |
Max.50WLED light |
Operating current |
1.3A max |
HF system |
5.8GHz±75MHz, ISM wave band |
Power consumption |
≤0.5W(standby), <1W(operation) |
Transmitting power |
<0.5mW |
Detection zone Max.(D x H) |
16m x 6m |
Motion detection |
0.5~3m/s |
Detection angle |
150°(wall installation) 360°(ceiling installation) |
IP rating |
IP20 |
Operation Temperature |
-20℃~50℃ |
Hold time |
0s / 5min / 30min / Disable |
Detection sensitivity |
25%/50%/75%/100% |
Dimming level |
10%/20%/30% / 40% |
Stand-by period |
10s / 90s / 3min / 10min |
Dimming mode |
Gradual dimming |
Daylight Sensor |
30lux/Disable |
Life time |
50000 hours |
Guaranty |
5 years |
Applications:
Stairwell, Corridor, Balcony, Pathway, etc.
