24V 5A 120W DIN Rail Power Supply / AC To DC Switching Power Supply

24V 5A 120W DIN Rail Power Supply / AC To DC Switching Power Supply

  • 24V 5A 120W DIN Rail Power Supply / AC To DC Switching Power Supply
  • 24V 5A 120W DIN Rail Power Supply / AC To DC Switching Power Supply
  • 24V 5A 120W DIN Rail Power Supply / AC To DC Switching Power Supply
24V 5A 120W DIN Rail Power Supply / AC To DC Switching Power Supply
Ürün ayrıntıları:
Place of Origin: China
Marka adı: VOTOO
Sertifika: CE,ROHS
Model Number: VP-2405000
Ödeme & teslimat koşulları:
Minimum Order Quantity: 100pcs
Fiyat: negotiation
Packaging Details: white box
Delivery Time: 5-10 days
Payment Terms: Ex works
Supply Ability: 1, 000, 000PCS/week
İletişim
Detaylı ürün tanımı
Vurgulamak:

regulated power supply

,

din rail mount power supply

,

regulated dc power supply

24V 5A 120W DIN Rail Power Supply / AC To DC Switching Power Supply

Quick Detail:


  1. 24V 5A din rail power supply
  2. Model No. : DR-120-24
  3. Type: switching power supply
  4. Material: Metal
  5. Package: white paper box
  6. Warranty: 1 year
  7. Certificate: CE & RoHS





Features:

o Universal Input 100~240VAC 50/60Hz



o Output Voltage: 24V

o Output Current:5A

o Power: 120Watt
o Ripple & Noise: 1% of Output Voltage



o High Efficiency

o Short Circuit Protection

o Over Voltage Protection

o Over Current Protection

o Green Circuit Design



Weight: 740g

o Dimensions: 145mm*125*85 mm



Specification:



OUTPUT

DC VOLTAGE

24V

OUTPUT POWER

120W

CURRENT RANGE

5A



INPUT

VOLTAGE RANGE

110VAC -264V AC

FREQUENCY RANGE

50-60Hz

EFFICIENCY(Typ.)

80%



ENVIRONMENT

WORKING TEMP.

-0°C ~ +40°C (Refer to output load derating curve)

STORAGE TEMP.,HUMIDITY

-10°C ~ +70°C 10~95% RH

COOLING METHOD

BY FREE AIR CONVECTION



How to Install?


  1. Before connecting check whether the power supply fullfields electrical specification Connect
  2. power supply to the supplied unit.
  3. Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
  4. Do not install power supply in locations with high humidity, dust or strong direct sunlight.
  5. The powersupply should be installed in a location with good airflow.
  6. Power supply can only be installed indoors.



Applications:

industrial automation control, military industry equipment, scientific research equipment, LED lighting, industrial control equipment, communications equipment, electrical equipment, instrumentation, medical equipment, semiconductor refrigeration and heating, air purifier, electronic refrigerator, LCD, LED lamps and lanterns, communications equipment, audio and video products, security monitoring, leds bags, computer case, digital products and instruments, etc.

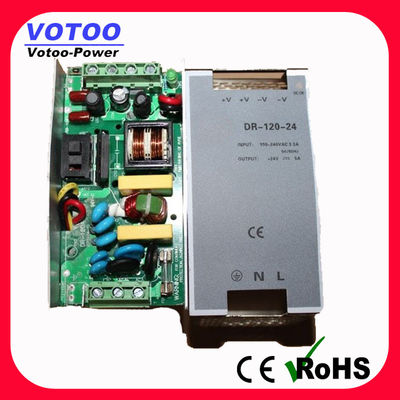

24V 5A 120W DIN Rail Power Supply / AC To DC Switching Power Supply 0

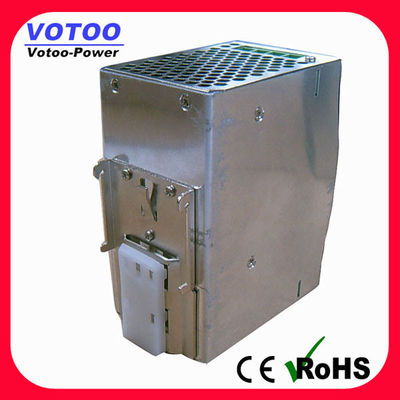

24V 5A 120W DIN Rail Power Supply / AC To DC Switching Power Supply 1

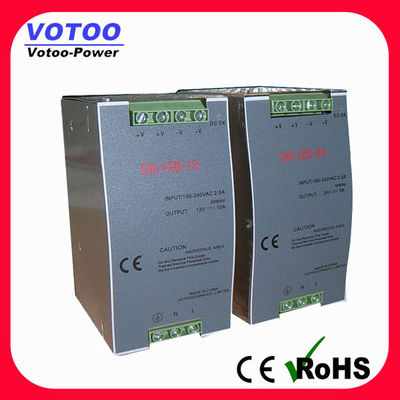

24V 5A 120W DIN Rail Power Supply / AC To DC Switching Power Supply 2
