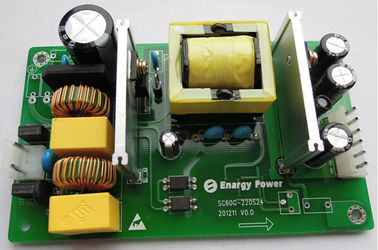

Medical Power Supply 60W Output 24VDC/2.5A SC60D-220S24A
Key Features
AC input range: 90~264Vac
Single outputs: 24V/2.5
High efficiency: 86%
Line regulation: ≤±1%
Load regulation: ≤±1%
Low ripple&noise:150mV
Isolation voltage: 4000Vac
No minimum load requirement
Frequency dithering function
short circuit protection
Output over current protection
Output over voltage protection
Natural cool
RoHS compliant
UL94V-0 flame-retarded rating
Product Overview
This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.
Electric Characteristics
Input Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Rated input voltage |
100 |
220 |
240 |
Vac |
|
AC input voltage range |
90 |
220 |
264 |
Vac |
|
AC input frequency range |
45 |
|
63 |
Hz |
|
Max. input current |
|
|
2 |
A |
Min. input voltage, full load |
Input inrush current |
|
|
60 |
A |
Max. input voltage,25℃, first start |
Efficiency |
|
86 |
|
% |
Rated input voltage, rated load |
Turn-on delay time |
|
|
1.5 |
S |
220VAC input,full load |
Turn-0ff hold time |
10 |
|
|
ms |
110VAC input,full load |
Dissipation |
|
|
0.6 |
W |
No load |
Output Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Output voltage range |
23.52 |
24 |
24.48 |
Vdc |
|
|
Output current range |
|
|
2.5 |
A |
220VAC input,6A for 1 second |
|
Line Regulation |
|
±1 |
|
% |
|
|
Load Regulation |
|
±1 |
|
% |
|
|
Ripple & noise |
|
|
150 |
mV |
Rated input, full load, 20 MHz bandwidth |
|
Dynamic response |
Deviation |
|
|
200 |
mV |
50% to 75% to 50% Iout max,0.1A/us |
Settling time |
|
|
200 |
uS |
To within 1% Vout nom. |
|
Turn-on rise time |
|
|
50 |
ms |
Full load,10%~90% Vout |
|
Output voltage overshoot |
|
|
±5 |
% |
|
|
Output Capacitance |
|
|
2200 |
μF |
Load mode:CR |
Protection Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Output over voltage protection |
110 |
120 |
130 |
% |
Lock-out,required to restart |
Output over load protection |
3 |
|
5 |
A |
Hiccup |
Short – Circuit Protection |
|
|
10 |
mΩ |
Hiccup |
General Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
MTBF |
50 |
|
|
KHrs |
Rated input, full load,25℃ |
Weight |
|
|
160 |
g |
|
Environmental Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Operating temperature |
0 |
|
+70 |
℃ |
Figures1 |
Storage temperature |
-40 |
|
+85 |
℃ |
|
Relative humidity |
10 |
|
90 |
%RH |
|
Altitude |
|
|
3000 |
m |
|
Safety Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Isolation voltage |
Input to output |
4000 |
|
|
Vac |
5mA/1min, No arcing and breakdown |
Isolation resistance |
Input to output |
|
100 |
|
MΩ |
500Vdc/1min, normal atmospheric pressure, 90% humidity |
Environmental Qualification
Parameter |
Notes |
Vibration |
Conforms to MIL-STD-810E,Method 516.5,Pro I,IV,VI; EN60068-2-6,IEC68-2-6 |
Mechanical Shock |
Conforms to MIL-STD-810E/F, Method514.4, EN60068-2-27,EN60068-2-47,IEC68-2-47,JIS C0041-1987 |
Solder ability |
IEC60068-2-20 |
EMC Characteristics
Item |
Standards |
Conditions |
Notes |
CE |
EN55022 |
Class A |
Pass system test |
RE |
EN55022 |
Class A |
Pass system test |
Voltage fluctuations and flicker |
EN61000-3-3 |
Class A equipments requirements |
Criterion B |
Notes:
Figure 1: Output power VS Ambient air temperature
Standards compliance
Standards |
Notes |
UL60950-1 |
|
EN60950-1 |
|
EN60601-1 |
|
SCA 22.2NO.601.1 |
|
UL2601 |
|
Mechanical Outline
Length×width×heigth:127.0×76×37.0(mm), 5×2.99×1.46(in),
Connector designation:
|
1 |
2 |
3 |
4 |
5 |
6 |
J1 |
L |
NC |
N |
|
|
|
J3 |
Vout+ |
Vout+ |
Vout+ |
Vout - |
Vout - |
Vout - |
