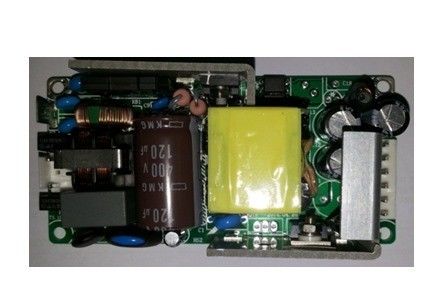

Reliability Medical Power Supply Triple output 15V / 4A ac dc converter MD60-30S15

Reliability Medical Power Supply Triple output 15V / 4A ac dc converter MD60-30S15

Reliability Medical Power Supply Triple output 15V / 4A ac dc converter MD60-30S15

Ürün ayrıntıları:

Place of Origin: China
Marka adı: Enargy
Model Number: MD60-30S15

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1pcs
Fiyat: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 15000Pcs/week
Şimdi başvurun
Detaylı ürün tanımı

Medical Power Supply 60W Output  15V/4A  MD60-30S15





Key Features

AC input range: 90~264Vac

Triple outputs: 15V/4A

High efficiency:85%

Line regulation: ≤±2%

Load regulation: ≤±2%

Low ripple&noise:≤150mV

short circuit protection

Output over current protection

Output over voltage protection

Natural cool

RoHS compliant

UL94V-0 flame-retarded rating



Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.



Electric Characteristics

Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Rated input voltage

100



240

Vac



AC input voltage range

90



264

Vac

Rated AC input frequency



50/60



Hz



AC input frequency range

47



63

Hz



Max. input current





2

A

Min. input voltage, full load

Input inrush current





60

A

230 Vac input voltage, 25℃, first start

Efficiency

AC input



85



%

Rated input voltage, rated load



Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output voltage range

14.7

15

15.3

Vdc



Output current range

0



4

A



Voltage Regulation





±2

%



Load Regulation





±2

%



Ripple & noise





150

mVp-p

Rated input,full load, 20 MHz bandwidth

ON/OFF rise time





±5

%



Output voltage overshoot





±5

%



Output Capacitance



2200



μF



Temperature coefficient



±0.02



%/℃



Turn ON defer



3



S



Output risetime



20



mS



Turn OFF keep in time



10/20



mS





Protection Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output over current protection

4.5



6.5

A

Hiccup

Output over voltage protection

16.5



19.5

Vdc



Short – Circuit Protection





10

Hiccup



General Characteristics

Parameter

Min

Typ

Max

Units

Notes

MTBF

100





KHrs

Rated input, full load,25℃

Weight



200



g





Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating temperature

0



+55



Storage temperature

-40



+85



Relative humidity

20



90

%



Storage humidity

10



95

%



Altitude





3000

m



Cooling-down method









Natural cooling

Atmospheric pressure

70



106

Kpa





Safety Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation voltage

Input to output

4000





Vac

5mA/1min, No arcing and breakdown

Input to ground

1500





Vac

Output to ground

500





Vdc

Isolation resistance

Input to output

100







Input to ground

100







Output to ground

100







Leakage current





0.275

mA

264Vac,normal condition



EMC Characteristics

Item

Standards

Conditions

Notes

CE

EN55011

Class B

Pass system test

RE

EN55022

Class B

Pass system test

Harmonic

EN61000-3-2

C type lamps requirements

Criterion B

Voltage fluctuations and flicker

EN61000-3-3

Class A equipments requirements

Criterion B

Surge

EN61000-4-5

Differential mode ±2KV,common mode±4KV

Criterion B

CS

IEC61000-4-6

LEVEL 2: 3V/M

Criterion A

RS

IEC61000-4-3

LEVEL 2: 3V/M

Criterion A

EFT

IEC61000-4-4

LEVEL 3: 2V/M

Criterion B

ESD

Air discharge

EN61000-4-2

±8KV

Criterion B

Contact discharge

EN61000-4-2

±4KV

Criterion B

Notes:

Criterion A: Normal performance during and after test.

Criterion B: Low-voltage protection or reset is not allowed. Temporary output voltage fluctuation ceases after disturbances ceases, and from which the EUT recovers its normal performance automatically. During the system test, output voltage fluctuation or reset is not allowed too.

Criterion C: Temporary loss of output is allowed, but the hardware can’t be damaged. The EUT recovers its normal performance automatically or operator intervention.

Criterion R: Loss of output which is not recoverable is allowed. The primary protective component (fuse) can be damaged. The EUT recovers its normal performance after replace the damaged component.



Environmental Qualification

Parameter

Notes

Vibration

Frequency range: 5-20Hz,+3dB/otc; 20-80Hz,0.04g2/Hz; 80-500Hz, -3dB/ot c ; X.Y.Z axes, 30min/axis

Mechanical Shock

Half-sine wave, 300m/s2,11ms, ±X,±Y,±Z, 6tims/direction

Cold(in operation)

IEC60068-2-1  Ad

Damp heat

IEC60068-2-67  Cy

Temperature Cycling

-40°C to 100°C, ramp 15°C/min., 500 cycles

Power/Thermal Cycling

Vin = min to max, full load, 100 cycles

Design Marginality

Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load

Life Test

95% rated Vin and load, units at derating point, 1000 hours

Solder ability

IEC60068-2-20



Standards compliance

Standards

Notes

UL/cUL60950



EN60950



GB4943



IEC 695-2-2

Needle flame test, test on entire assembly, board&plastic components UL94V-0 compliant

IEC 61000-4-2





Mechanical Outline

Length×width×heigth:101.6×50.8×28 (mm),4×2×1.1(in)

Reliability Medical Power Supply Triple output 15V / 4A ac dc converter MD60-30S15

Connector designations

Input connector

Pin code

Function

L

Live line

NC

Null

N

Neutral line

Output connector

Pin code

Function

VO+

Positive output voltage

VO+

Positive output voltage

VO-

Negative output voltage

VO-

Negative output voltage

S-

Negative remote sense

S+

Positive remote sense
