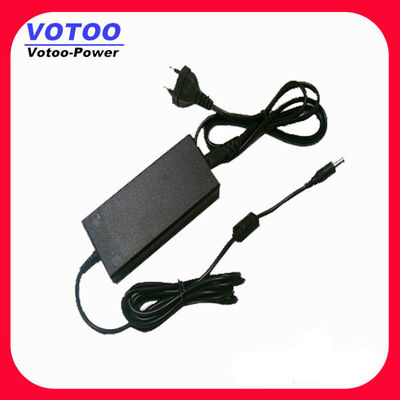

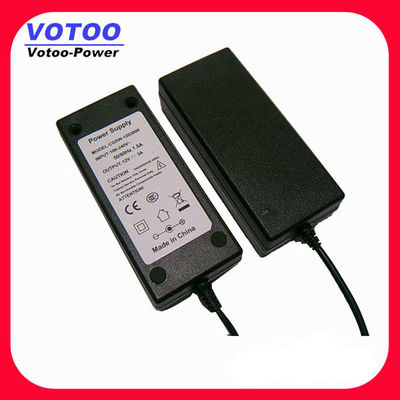

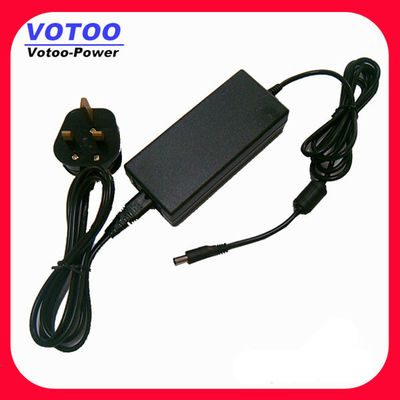

POS terminal adapter 24V 2.5A AC DC power supply with EU AC plug
Quick Detail:
-
POS terminal adapter 24V 2.5A
-
Type: desktop type
-
AC plug: EU,US,AUS,UK,CN etc.
-
DC plug: 5.5*2.1mm,5.5*2.5mm,3.5*1.35mm, micro/mini usb etc.
-
Material:plastic materials
-
Certificate: CE & RoHS
-
leakage Current: 0.25mA
-
Safety : SCP OCP OVP
-
OEM/ODM welcome
Features:
o Output Voltage: 24V
o Output Current: 2500mA
o Power:60Watt
o Leakage Current: 0.25mA
o No load power Consumption
o Working Temperature:0-40°C Max
o Efficiency:86%Min
o High Efficiency
o Short Circuit Protection
o Universal Input 100~240VAC 50/60Hz
o Small volume, light weight, high efficiency.
o Cooling by free air convection.
o 100% Full load burn-in test.
o One year warranty.
o Ripple & Noise: 1% of Output Voltage
o Over Voltage Protection
o Over Current Protection
o Green Circuit Design
Weight: 370g
o Dimensions: 119.0 x52.0 x 32.0mm
o Accurate information and descriptions.
o All orders are shipped on time.
o All items are fully inspected prior to shipping to meet international standards by our QC staffs.
o All items are with CE RoHS approval to ensure the products quality.
Packing details:
1 piece per white box
40PCS/CTN
G.W.: 11.5KGS/CTN
N.W.: 12.5KGS/CTN
Specification:
|
OUTPUT
|
DC VOLTAGE
|
24V
|
|
OUTPUT POWER
|
60W
|
|
CURRENT RANGE
|
2500mA
|
|
INPUT
|
VOLTAGE RANGE
|
110VAC -264V AC
|
|
FREQUENCY RANGE
|
50-60Hz
|
|
EFFICIENCY(Typ.)
|
86%
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-0°C ~ +40°C (Refer to output load derating curve)
|
|
STORAGE TEMP.,HUMIDITY
|
-10°C ~ +70°C 10~95% RH
|
|
COOLING METHOD
|
BY FREE AIR CONVECTION
|
How to Install?
-
Before connecting check whether the power supply fullfields electrical specification (output voltage and current). Also check the socket type and its polarity.
-
Connect power supply to the supplied unit.
-
Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
-
Do not install power supply in locations with high humidity, dust or strong direct sunlight.
-
The power supply should be installed in a location with good airflow.
-
Power supply can only be installed indoors.
-
AC wire should connect tight with adapter socket, in case poor contact socket.
Applications:
1. CCTV security, door access, digital camera, etc.
2. POS machine, mini printing machine, etc.
3. Electronic scale, flowerpot etc.
4. LED strip, LED lighting etc.
