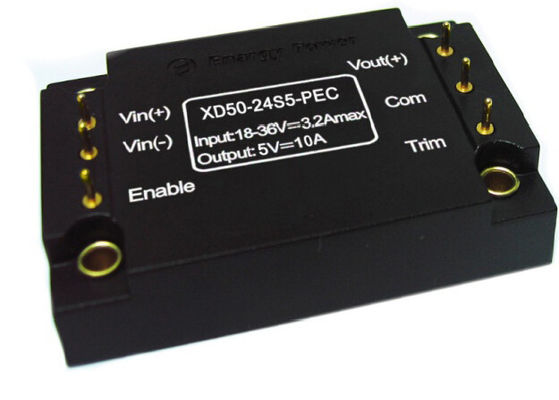

DC-DC Converters 50W Output 5V XD50-24S5-PEC

DC-DC Converters 50W Output 5V XD50-24S5-PEC

  • DC-DC Converters 50W Output 5V XD50-24S5-PEC
DC-DC Converters 50W Output 5V XD50-24S5-PEC
Ürün ayrıntıları:
Place of Origin: China
Marka adı: Enargy
Model Number: XD50-24S5-PEC
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1pcs
Fiyat: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 1000Pcs/week
İletişim
Detaylı ürün tanımı
Vurgulamak:

isolated dc dc converter

,

high power dc dc converter

DC-DC Converters 50W Output 5V XD50-24S5-PEC



Features:

Wide input range: 18‐36 V

Output power: 50W

High conversion efficiency: 90%

Line regulation to:±1%

Load regulation to:±1%

Input under‐voltage lock‐out

Output voltage trim±‐8~+10% Vout

Output over‐current protection

Hiccup mode short circuit protection

Output over‐voltage protection

Enable (On/Off) Control

Isolation Voltage(Input to output):1500Vdc



Product Overview:

These DC‐DC converter modules use advanced power

processing, control and packaging technologies to

provide the performance, flexibility, reliability and cost

effectiveness of a mature power component. High

frequency Active Clamp switching provides high power

density with low noise and high efficiency.



1. Electric Characteristics

1.1 Absolute Maximum Ratings

Parameter

Min

Typ

Max

Units

Notes

Input Voltage





40

Vdc

Continuous, non-operating





36

Vdc

Continuous, operating





40

Vdc

Impulse voltage,<100ms,operating

Isolation voltage





2000

Vdc

Input to output

Operating Temperature

-40



100

In view of PCB Temperature

Storage Temperature

-55



105



Enable to -Vin Voltage

-2



15

Vdc





1.2 Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating input voltage range

18

24

36

Vdc



Input Under-Voltage Lockout

17.0

17.5

17.9

Vdc

Recovery point

16

16.5

17.0

Vdc

Protect point

Maximum Input Current





3.5

A

Vin min,output full load

Efficiency



88



%

Rated input;rated load

Dissipation,Standby



2

5

W

No load



1.3 Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output Voltage Set point

4.95

5.00

5.05

Vdc

Rated input voltage, load

Output Voltage Range

4.90

5.00

5.10

Vdc



Output Current Range

0



10

A



Voltage Regulation



±0.2

±1

%



Load Regulation



±0.2

±1

%



Output over-current protection



12.5



A

90% of the rated output voltage

Output Short Circui Current



10

20

A



RMS



15



mV

Nominal input; full load; 20MHz,bandwidth

peak-to-peak



75



mV

Capacitive load from themachine





4000

μF





1.4 Dynamic Response Characteristics

Parameter

Min

Typ

Max

Units

Notes

Change in Output Current



250



mV

Load change50%~75%~50% Iout max,di/dt=

0.1A/μS



250



mV

Load change50%~75%~50% Iout max,di/dt=

0.5A/μS

Dynamic recovery time





300

uS



Turn-on Time



5



mS

Starting from vin to vout rise to 90%

Turn-off overshoot





5

%





1.5  Functional Characteristics

Parameter

Min

Typ

Max

Units

Notes

Switching Frequency

180

200

230

KHz



Output Trim





10

% Vout

Trim Up





8

Trim Down

Enable Current





1

mA



Enable (ON/OFF)

1



15

Vdc

ON-control, Logic high or floating

-0.5



0.3

Vdc

OFF-control, Logic low

Over-Voltage Protection

110



130

%

Load

Over-Load Protection

110





%

Current mode,Pulse current(100% rared load)

Short-Circuit Protection





65

Hiccup mode,since the recovery



1.6 Isolation Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation Voltage

1500





Vdc

Input to Output

1500





Vdc

In to base

500





Vdc

Out to base

Isolation Resistance

100





At 500VDC to test it when atmospheric

pressure and R.H. is 90%

Isolation Capacitance



1000



pF





2. General Characteristics

Parameter

Min

Typ

Max

Units

Notes

Weight



25



g



MTBF

1





MHrs

TR-NWT-000332; 80% load,300LFM,

40℃ Ta



3. Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating Temperature

-40



100

Extended, base PCB temperature

Storage Temperature

-55



105

Ambient

Temperature Coefficient





±0.02

%/℃



Humidity

20



95

%R.H.





4. Standards Compliance

Parameter

Notes

MIL-STD-704



MIL-STD-1399



MIL-STD-810



UL/cUL60950



EN60950



GB4943



IEC 61000-4-2







5. WORK WAVE

DC-DC Converters 50W Output 5V XD50-24S5-PEC 0DC-DC Converters 50W Output 5V XD50-24S5-PEC 1

Figure 1: Efficiency at nominal output voltage vs. load
current for minimum, nominal, and maximum input
voltage at 25°C.

Figure 2: Efficiency at nominal output voltage and
60% rated power vs. airflow rate for ambient air
temperatures of 25°C.



DC-DC Converters 50W Output 5V XD50-24S5-PEC 2DC-DC Converters 50W Output 5V XD50-24S5-PEC 3

Figure 3: Maximum output power derating curves vs.
ambient air temperature for airflow rates of 0 LFM
through 400 LFM with air flowing from pin 1 to pin 3
(nominal input voltage).

Figure 4: Output voltage ripple at nominal input voltage
and rated load current . Load capacitance: 0.1μF ceramic
capacitor and 10μF tantalum capacitor. Bandwidth: 20
MHz.



DC-DC Converters 50W Output 5V XD50-24S5-PEC 4DC-DC Converters 50W Output 5V XD50-24S5-PEC 5

Figure 5: Thermal plot of converter at full load
current(50W) with 25°C air flowing at the rate of 200
LFM. Air is flowing across the converter from pin 1 to
pin 3(nominal input voltage).

Figure 6: Thermal plot of converter at full load
current(50W) with 25°C air flowing at the rate of 200
LFM. Air is flowing across the converter from input
to output (nominal input voltage).



DC-DC Converters 50W Output 5V XD50-24S5-PEC 6DC-DC Converters 50W Output 5V XD50-24S5-PEC 7

Figure 7: Turn-on transient at full load (resistive load)
(10ms/div).Input voltage pre-applied.
Ch1:Vout (2V/div)
Ch2:ON/OFF Input (500mV/div)

Figure 8: Shut-down fall time at full load (10 ms/div).
Ch1:Vout (2V/div)
Ch2:ON/OFF Input (500mV/div)



DC-DC Converters 50W Output 5V XD50-24S5-PEC 8DC-DC Converters 50W Output 5V XD50-24S5-PEC 9

Figure 9: Output voltage response to step-change in
load current (50%-75%-50% of Iout(max); dI/dt =
0.1A/μs). Load cap: 10μF, 100mΩ ESR tantalum
capacitor and 0.1μF ceramic capacitor.
Ch1: Vout (500mV/div)

Figure 10: Output voltage response to step-change in load
current (50%-75%-50% of Iout(max): dI/dt =2.5A/μs). Load
cap: 10μF, 30 mΩ ESR tantalum capacitor and 0.1μF
ceramic cap. Ch1: Vout (500mV/div)





6 Physical Information
6.1 Mechanical Outline

DC-DC Converters 50W Output 5V XD50-24S5-PEC 10



Notes:
1. All pins are (1.02mm) dia.
2.Tolerances: x.x ±0.5mm, x.xx ±0.25mm



6.2 Pin Designations

Pin No.

Name

Function

1

Enable

TTL input to turn converter on and off, referenced to Vin(-), with internal pull up.

2

Vin(-)

Negative input voltage

3

Vin(+)

Positive input voltage

4

Vout(+)

Positive output voltage

5

Com

Ground

6

Trim

Negative output voltage
