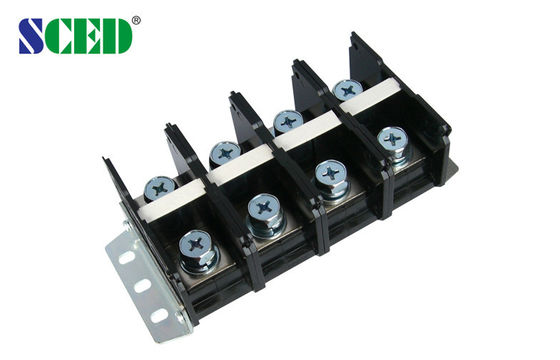

32mm Right Angle High Current Terminal Block For Power Supply 600V 175A

Ürün ayrıntıları:

Ödeme & teslimat koşulları:

İletişim

Detaylı ürün tanımı

Applications:	PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control	Color:	Black
Number of Contacts:	Any Poles Available	Pitch:	32.00mm
Rated Current:	175A	Rated Voltage:	600V
Type:	High Current Barrier Terminal Block, Power terminal blocks, Electrical terminal Blocks	Wire Range:	3/0-20
Vurgulamak:	wiring terminal blocks , pcb wire terminals

32mm Right Angle High Current Terminal Block For Power Supply 600V 175A

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks

How to order:

32mm Right Angle High Current Terminal Block For Power Supply 600V 175A 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 175	600 / 175
Wire Range AWG	3/0-20	3/0-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 175	1000 / 175	1000 / 175
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	80
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Terminal / Plating	Brass / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	14-18
Screw / Torque / lbf.in	M8 / 31-40

32mm Right Angle High Current Terminal Block For Power Supply 600V 175A 1

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
